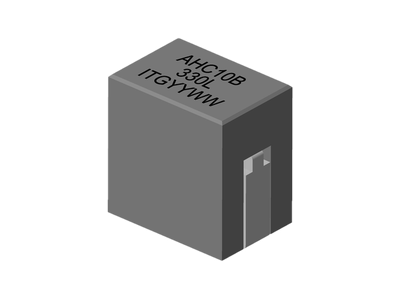

AHC10B 系列
• Ferrite based SMD inductor with lower core loss.
• Inductance Range: 330.0 nH , custom values are welcomed.
• High current output chokes, up to 35.0 Amp with approx. 20% roll off.
• Low Profile 10.00 mm height max.
• Foot Print 10.60 x 7.00 mm max.
• Perfect for high density designs with limited board space.
• Operating frequency up to 5.0 MHz.
• Operating Temperature Range -55°C to + 130°C.
• T & R Qtys: 350 pcs , 13'' Reel. RoHS & HF compliant.
• Inductance Range: 330.0 nH , custom values are welcomed.
• High current output chokes, up to 35.0 Amp with approx. 20% roll off.
• Low Profile 10.00 mm height max.
• Foot Print 10.60 x 7.00 mm max.
• Perfect for high density designs with limited board space.
• Operating frequency up to 5.0 MHz.
• Operating Temperature Range -55°C to + 130°C.
• T & R Qtys: 350 pcs , 13'' Reel. RoHS & HF compliant.
| 零件编号 | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | 下载 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 0.33 | 0.4 | 41 | 35 | 30 | 10.6 | 7 | 0.33uH, 15%, 0.4mOhm, 35Amp Max. SMD Power bead | Data Sheet |
