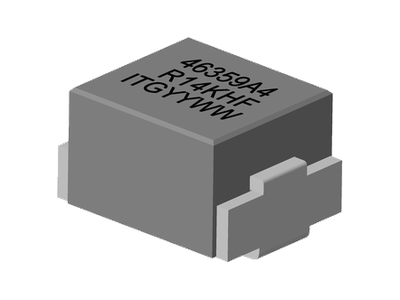

AHD46359 系列
• Ferrite based SMD Inductor with lower core loss.
• Inductance Range:140nH to 150nH. Custom values are welcomed.
• High current output chokes, upto 76.0 Amp with approx. 30% roll off.
• Low Profile 8.80mm Max. height .
• Foot Print 12.00 x 9.40 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1.0 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance .
• T & R Qtys: 450 pcs , 13'' Reel
