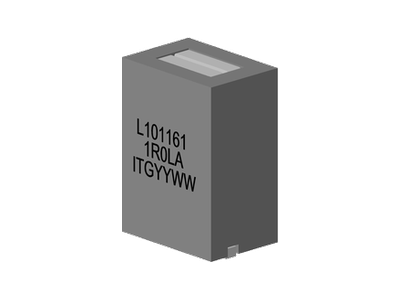

L101161 系列
• Ferrite based SMD Inductor with lower core loss.
• Custom values are welcomed.
• High current output chokes, up to 46.00 Amp with approx. 20% roll off.
• Low Profile 14.00 mm Max.height.
• 10.00 x 7.00 mm Foot Print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliant.
• T & R Qtys: 500 pcs , 13'' Reel.
• Custom values are welcomed.
• High current output chokes, up to 46.00 Amp with approx. 20% roll off.
• Low Profile 14.00 mm Max.height.
• 10.00 x 7.00 mm Foot Print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliant.
• T & R Qtys: 500 pcs , 13'' Reel.
| 零件编号 | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | 下载 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 14 | 1.2 | 1 | 28 | 25 | 19 | 10 | 7 | 1.2uH, 15%, 1mOhm, 25Amp Max. SMD Power bead | Data Sheet | ||
| 14 | 1 | 1.19 | 27 | 32 | 25 | 10 | 7 | 1uH, 15%, 1.19mOhm, 32Amp Max. SMD Power bead | Data Sheet | ||
| 14 | 0.82 | 1 | 28 | 39 | 30 | 10 | 7 | 0.82uH, 15%, 1mOhm, 39Amp Max. SMD Power bead | Data Sheet | ||
| 14 | 0.68 | 1 | 28 | 46 | 37 | 10 | 7 | 0.68uH, 15%, 1mOhm, 46Amp Max. SMD Power bead | Data Sheet |
