- SMD

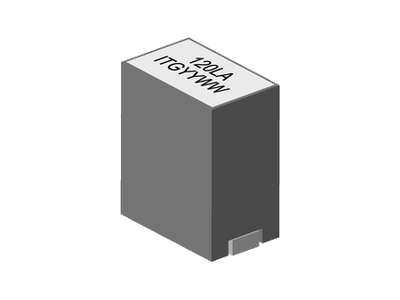

L101247A 系列
| 零件编号 | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 20℃ | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | 下载 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 0.33 | 0.125 | 78 | 36 | 30 | 10 | 6.4 | 0.33uH, 15%, 0.125mOhm, 36Amp Max. SMD Power bead | Data Sheet | |||
| 12 | 0.3 | 0.125 | 78 | 44 | 37 | 10 | 6.4 | 300nH, 15%, 0.125mOhm, 44.0A Max. SMD Power Bead | Data Sheet | |||
| 12 | 0.25 | 0.125 | 78 | 50 | 44 | 10 | 6.4 | 0.25uH, 15%, 0.125mOhm, 50Amp Max. SMD Power bead | Data Sheet | |||
| 12 | 0.22 | 0.125 | 78 | 57 | 48 | 10 | 6.4 | 220nH, 15%, 0.125mOhm, 57A MAX. SMD Power Bead | Data Sheet | |||
| 12 | 0.15 | 0.125 | 78 | 84 | 71 | 10 | 6.4 | 0.15uH, 15%, 0.125mOhm, 84Amp Max. SMD Power bead | Data Sheet | |||
| 12 | 0.135 | 0.125 | 78 | 95 | 81 | 10 | 6.4 | 0.135uH, 15%, 0.125mOhm, 95Amp Max. SMD Power bead | Data Sheet | |||
| 12 | 0.12 | 0.125 | 78 | 107 | 92 | 10 | 6.4 | 0.12uH, 15%, 0.125mOhm, 107Amp Max. SMD Power bead | Data Sheet | |||
| 12 | 0.11 | 0.125 | 78 | 125 | 105 | 10 | 6.4 | 110nH, 15%, 0.125mOhm, 125.0A Max. SMD Power Bead | Data Sheet | |||
| 12 | 0.1 | 0.125 | 78 | 129 | 110 | 10 | 6.4 | 0.1uH, 15%, 0.125mOhm, 129Amp Max. SMD Power bead | Data Sheet | |||
| 12 | 0.08 | 0.125 | 78 | 155 | 137 | 10 | 6.4 | 0.08uH, 15%, 0.125mOhm, 155Amp Max. SMD Power bead | Data Sheet | |||
| 12 | 0.07 | 0.125 | 78 | 180 | 170 | 10 | 6.4 | 0.07uH, 15%, 0.125mOhm, 180Amp Max. SMD Power bead | Data Sheet |
