- SMD

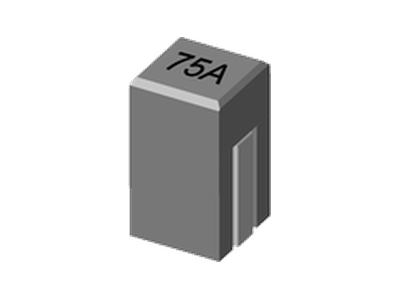

SL1221A 系列
• T & R Qtys: 1400 pcs , 13'' Reel.
• Operating Temperature Range -40°C to + 125°C.
• Rohs and HF Compliance Component.
• Operating frequency up to 1.0 MHz.
• Operating Temperature Range -40°C to + 125°C.
• Rohs and HF Compliance Component.
• Operating frequency up to 1.0 MHz.
| 零件编号 | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | 下载 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 5.5 | 0.075 | 0.33 | 19 | 16 | 13 | 3 | 3 | 0.075uH, 20%, 0.33mOhm, 19Amp Max. SMD Power bead | Data Sheet |
