SL47328 系列

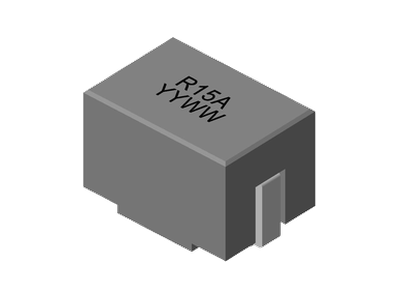

• Ferrite based SMD Inductor with lower core loss.
• Inductance Range:210nH to 260nH. Custom values are welcomed.
• High current output chokes, upto 69.0 Amp with approx. 20% roll off.
• Low Profile 8.0mm Max. height.
• Foot Print 12.1 x 8.0 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
• T & R Qtys: 500 pcs , 13'' Reel.
• Inductance Range:210nH to 260nH. Custom values are welcomed.
• High current output chokes, upto 69.0 Amp with approx. 20% roll off.
• Low Profile 8.0mm Max. height.
• Foot Print 12.1 x 8.0 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
• T & R Qtys: 500 pcs , 13'' Reel.
| 零件编号 | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | 下载 | |
|---|---|---|---|---|---|---|---|---|---|---|
| 8 | 0.26 | 0.29 | 50 | 54 | 12.1 | 8 | 0.26uH, 10%, 0.29mOhm, 54Amp Max. SMD Power bead | Data Sheet | ||
| 8 | 0.23 | 0.29 | 50 | 64 | 12.1 | 8 | 0.23uH, 10%, 0.29mOhm, 64Amp Max. SMD Power bead | Data Sheet | ||
| 8 | 0.21 | 0.29 | 50 | 69 | 12.1 | 8 | 0.21uH, 10%, 0.29mOhm, 69Amp Max. SMD Power bead | Data Sheet |
