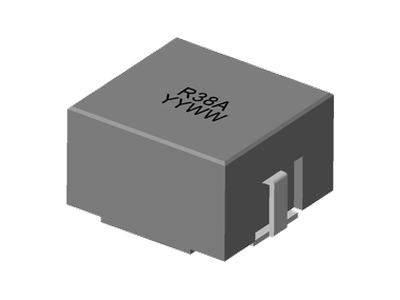

SL5033 系列
• Ferrite based SMD Inductor with lower core loss.
• Custom values are welcomed.
• High current output chokes, upto 45 Amp with approx. 20% roll off.
• Low Profile 8.5mm Max. height.
• Foot Print 13.5 x 13.0 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C, RoHs & HF compliance.
• Custom values are welcomed.
• High current output chokes, upto 45 Amp with approx. 20% roll off.
• Low Profile 8.5mm Max. height.
• Foot Print 13.5 x 13.0 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C, RoHs & HF compliance.
| 零件编号 | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | 下载 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 8.5 | 0.38 | 0.54 | 35 | 45 | 37 | 13.5 | 13 | 0.38uH, 10%, 0.54mOhm, 45Amp Max. SMD Power bead | Data Sheet |
