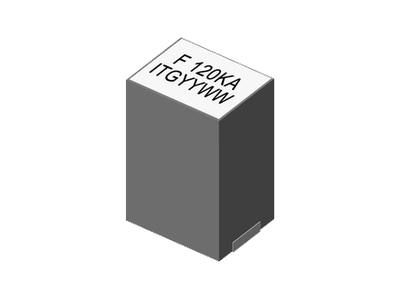

SLA3247 系列
• Ferrite based SMD inductor with lower core loss.
• Inductance Range: 70.0nH to 470.0nH , custom values are welcomed.
• High current output chokes, up to 168.0 Amp with approx. 20% roll off.
• Low Profile 12.00 mm Max. height.
• 8.00 x 6.40 mm Foot Print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1.0 MHz.
• Operating Temperature Range -55°C to + 130°C. RoHs & HF compliant.
• T & R Qtys: 300 pcs , 13'' Reel.
• Inductance Range: 70.0nH to 470.0nH , custom values are welcomed.
• High current output chokes, up to 168.0 Amp with approx. 20% roll off.
• Low Profile 12.00 mm Max. height.
• 8.00 x 6.40 mm Foot Print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1.0 MHz.
• Operating Temperature Range -55°C to + 130°C. RoHs & HF compliant.
• T & R Qtys: 300 pcs , 13'' Reel.
| 零件编号 | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | 下载 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 0.47 | 0.18 | 61 | 23 | 17 | 8 | 6.4 | 470nH, 15%, 0.18mOhm, 23.0A Max. SMD Power Bead | Data Sheet | ||
| 12 | 0.33 | 0.18 | 61 | 34 | 26 | 8 | 6.4 | 330nH, 15%, 0.18mOhm, 34.0A Max. SMD Power Bead | Data Sheet | ||
| 12 | 0.3 | 0.18 | 61 | 35 | 28 | 8 | 6.4 | 300nH, 10%, 0.18mOhm, 35.0A Max. SMD Power Bead | Data Sheet | ||
| 12 | 0.15 | 0.18 | 61 | 80 | 64 | 8 | 6.4 | 0.15uH, 10%, 0.18mOhm, 80Amp Max. SMD Power bead | Data Sheet | ||
| 12 | 0.12 | 0.18 | 61 | 98 | 78 | 8 | 6.4 | 0.12uH, 10%, 0.18mOhm, 98Amp Max. SMD Power bead | Data Sheet | ||
| 12 | 0.1 | 0.81 | 61 | 117 | 90 | 8 | 6.4 | 100nH, 10%, 0.81mOhm, 117.0A Max. SMD Power Bead | Data Sheet | ||
| 12 | 0.09 | 0.81 | 61 | 130 | 100 | 8 | 6.6 | 90nH, 10%, 0.81mOhm, 130.0A Max. SMD Power Bead | Data Sheet | ||
| 12 | 0.08 | 0.18 | 61 | 147 | 112 | 8 | 6.6 | 80nH, 10%, 0.81mOhm, 147.0A Max. SMD Power Bead | Data Sheet | ||
| 12 | 0.07 | 0.18 | 61 | 168 | 123 | 8 | 6.6 | 70nH, 10%, 0.18mOhm, 168.0A Max. SMD Power Bead | Data Sheet |
