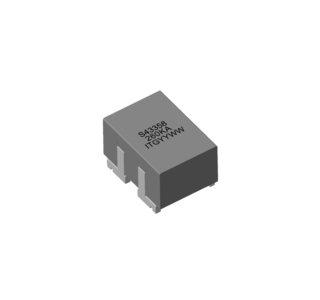

SLA43358 系列
• Ferrite based SMD Inductor with lower core loss.
• Inductance Range: 260.0 nH , Custom values are welcomed.
• High current output chokes, up to 51.0 Amp with approx. 20% roll off.
• Low Profile 10.00 mm Max. height.
• 11.90 x 16.60 mm Foot Print.
• Perfect for high density designs with limited board space.
• Operating frequency up to 2.0 MHz.
• Operating Temperature Range -55°C to + 130°C. RoHs & HF compliant.
• T & R Qtys: 300 pcs , 13'' Reel.
• Inductance Range: 260.0 nH , Custom values are welcomed.
• High current output chokes, up to 51.0 Amp with approx. 20% roll off.
• Low Profile 10.00 mm Max. height.
• 11.90 x 16.60 mm Foot Print.
• Perfect for high density designs with limited board space.
• Operating frequency up to 2.0 MHz.
• Operating Temperature Range -55°C to + 130°C. RoHs & HF compliant.
• T & R Qtys: 300 pcs , 13'' Reel.
| 零件编号 | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | 下载 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 0.26 | 0.21 | 51 | 51 | 47 | 11.9 | 16.6 | 0.26uH, 10%, 0.21mOhm, 51Amp Max. SMD Power bead | Data Sheet |
