- SMD

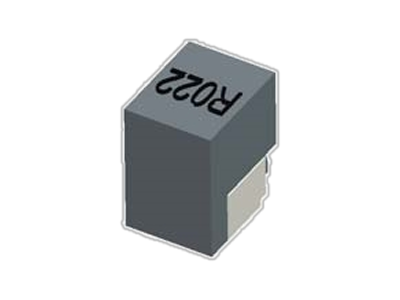

SLC1624 系列
• T & R Qtys: 1200 pcs , 13'' Reel.
• Operating Temperature Range -55°C to + 130°C.
• Rohs and HF Compliance Component.
• Operating frequency up to 1.0 MHz.
• Operating Temperature Range -55°C to + 130°C.
• Rohs and HF Compliance Component.
• Operating frequency up to 1.0 MHz.
| 零件编号 | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | 下载 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 0.022 | 0.23 | 28 | 60 | 55 | 4 | 4 | 0.022uH, 20%, 0.23mOhm, 60Amp Max. SMD Power bead | Data Sheet | 3D Step File |
