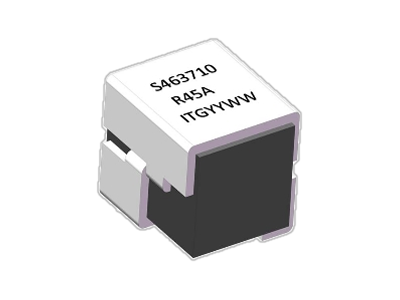

SLM463710 系列
• Ferrite based SMD Inductor with lower core loss.
• Inductance Range:0.22uH to 1.30uH. Custom values are welcomed.
• High current output chokes, upto 96.0 Amp with approx. 20% roll off.
• Low Profile 9.50mm
• 9.80mm Max. height.
• Foot Print 10.40 x 11.70 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 5.0 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
• T & R Qtys: 250 pcs , 13'' Reel.
• Inductance Range:0.22uH to 1.30uH. Custom values are welcomed.
• High current output chokes, upto 96.0 Amp with approx. 20% roll off.
• Low Profile 9.50mm
• 9.80mm Max. height.
• Foot Print 10.40 x 11.70 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 5.0 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
• T & R Qtys: 250 pcs , 13'' Reel.
| 零件编号 | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | 下载 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 9.5 | 1.3 | 0.35 | 40 | 12 | 10 | 10.4 | 11.7 | 1.30uH, 20%, 0.35mOhm DCR, 12.0A SMD Power Bead Inductor | Data Sheet | ||
| 9.5 | 1.2 | 0.35 | 40 | 15 | 13 | 10.4 | 11.7 | 1.20uH, 20%, 0.35mOhm DCR, 15.0A SMD Power Bead Inductor | Data Sheet | ||
| 9.5 | 1 | 0.35 | 40 | 19 | 16 | 10.4 | 11.7 | 1uH, 20%, 0.35mOhm, 19Amp Max. SMD Power bead | Data Sheet | ||
| 9.5 | 0.6 | 0.35 | 40 | 31 | 10.4 | 11.7 | 0.6uH, 20%, 0.35mOhm, 37Amp Max. SMD Power bead | Data Sheet | |||
| 9.5 | 0.525 | 0.35 | 40 | 33 | 10.4 | 11.7 | 0.525uH, 20%, 0.35mOhm, 41Amp Max. SMD Power bead | Data Sheet | |||
| 9.5 | 0.45 | 0.35 | 40 | 51 | 42 | 10.4 | 11.7 | 0.45uH, 20%, 0.35mOhm, 51Amp Max. SMD Power bead | Data Sheet | ||
| 9.5 | 0.35 | 0.35 | 40 | 65 | 56 | 10.4 | 11.7 | 0.35uH, 20%, 0.35mOhm, 65Amp Max. SMD Power bead | Data Sheet | ||
| 9.8 | 0.22 | 0.35 | 40 | 96 | 80 | 10.4 | 11.7 | 0.22uH, 20%, 0.35mOhm, 96Amp Max. SMD Power bead | Data Sheet |
