- SMD

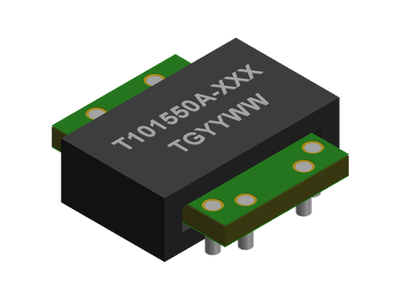

T101550A 系列
• SMD planar transformer with full selection of turn ratios
• Primary current rating of 26 to 35A
• Inductance range from 1.5μH to 6.0μH. Custom values are welcomed
• 25.5 x 25.3 mm Max. Foot Print with 9.00 mm Max. height
• Hi-Pot rating of 200 Vrms
• Tape & Reel Quantity: 200 pieces per 13 inches reel
• RoHS and HF compliant
• Primary current rating of 26 to 35A
• Inductance range from 1.5μH to 6.0μH. Custom values are welcomed
• 25.5 x 25.3 mm Max. Foot Print with 9.00 mm Max. height
• Hi-Pot rating of 200 Vrms
• Tape & Reel Quantity: 200 pieces per 13 inches reel
• RoHS and HF compliant
| 零件编号 | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | 下载 | |
|---|---|---|---|---|---|---|
| 9 | 25.5 | 25.3 | 6.0uH, 2.2mOhm, 35Amp, SMD Planar Transformer | Data Sheet | ||
| 9 | 25.5 | 25.3 | 6.0uH, 2.2mOhm, 26Amp, SMD Planar Transformer | Data Sheet | ||
| 9 | 25.5 | 25.3 | 1.5uH, 0.6mOhm, 30Amp, SMD Planar Transformer | Data Sheet | ||
| 9 | 25.5 | 25.3 | 1.5uH, 1.0mOhm, 35Amp, SMD Planar Transformer | Data Sheet |
