- DIP

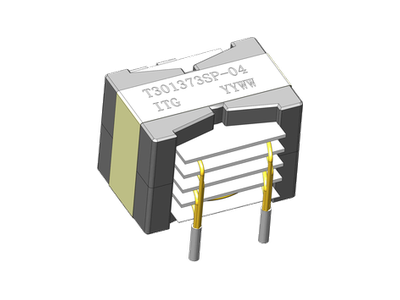

T301373SP 系列
• · LLC transformer for digital based solution with soft switching full bridge LLC DC
• DC converter· For high efficiency and high power density full bridge 3Kwatt LLC GaN based resonant converter· High power upto 3kWatt and high voltage upto 650V· 42.00 x 40.00 mm Max. footprint with 30.00 mm Max. height· Ideal for Datacenter, Electrical Car and industrial grade power conversion application. · Recommended by GAN System under GS-EVB-LLC-3KW-GS Technical Manual· Operating temperature range: -25°C to +125°C· RoHS & HF compliance Components
• DC converter· For high efficiency and high power density full bridge 3Kwatt LLC GaN based resonant converter· High power upto 3kWatt and high voltage upto 650V· 42.00 x 40.00 mm Max. footprint with 30.00 mm Max. height· Ideal for Datacenter, Electrical Car and industrial grade power conversion application. · Recommended by GAN System under GS-EVB-LLC-3KW-GS Technical Manual· Operating temperature range: -25°C to +125°C· RoHS & HF compliance Components
| 零件编号 | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | 下载 | ||
|---|---|---|---|---|---|---|---|
| 30 | 42 | 40 | LLC Transformer for GAN System 3K Watt 75.0uH, 18.0mOhm | Data Sheet | 3D Step File | Data Sheet |
