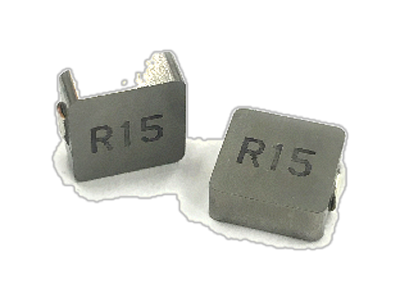

SM4024 Serie
• 11.7x10mm foot print, 6mm height SMD molded inductor.
• High saturation current characteristics by distributed gapped metal dust core.
• Ideally for portable device, notebook, server computer and high density DC to DC converter applications.
• T & R Quantity: 500 piece per reel.
• RoHS Compliance and Halogen Free.
• Operating Temperature Range -55℃ to +150℃.
• High saturation current characteristics by distributed gapped metal dust core.
• Ideally for portable device, notebook, server computer and high density DC to DC converter applications.
• T & R Quantity: 500 piece per reel.
• RoHS Compliance and Halogen Free.
• Operating Temperature Range -55℃ to +150℃.
| Teilenummer | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Dimension L (mm) Max | Dimension W (mm) Max | Description | Herunterladen | |
|---|---|---|---|---|---|---|---|---|---|
| 6 | 0.33 | 0.6 | 35 | 11.7 | 10.3 | 0.33uH, 20%, 0.6mOhm, 48Amp Max. SMD Molded Inductor | Data Sheet |
