- DIP

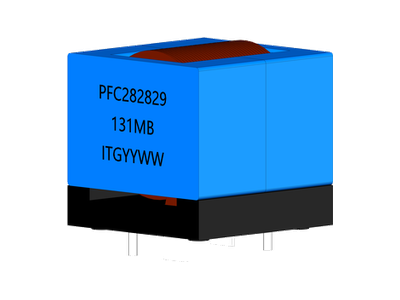

PFC282829B Serie
• Alloy powder based DIP Inductor with lower core loss
• No thermal aging concerns
• Inductance Range: 115.0 uH to 700.0 uH, custom values are welcomed
• High current output chokes, up to 28.0 Amp with approx. 50% roll off
• Designed and developed for Power Factor Correction applications
• Foot Print 27.5 x 28.5mm max., 28.0mm max. Height
• Surge Voltage: 400VDC
• Operating Temperature Range: -55°C to + 150°C
• RoHs & HF compliant
• MTBF = 2,083,333,333 hours, FIT = 0.48 ( per billions hour ) per Telcordia SR-332
• No thermal aging concerns
• Inductance Range: 115.0 uH to 700.0 uH, custom values are welcomed
• High current output chokes, up to 28.0 Amp with approx. 50% roll off
• Designed and developed for Power Factor Correction applications
• Foot Print 27.5 x 28.5mm max., 28.0mm max. Height
• Surge Voltage: 400VDC
• Operating Temperature Range: -55°C to + 150°C
• RoHs & HF compliant
• MTBF = 2,083,333,333 hours, FIT = 0.48 ( per billions hour ) per Telcordia SR-332
| Teilenummer | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Dimension L (mm) Max | Dimension W (mm) Max | Description | Herunterladen | |
|---|---|---|---|---|---|---|---|---|
| 28 | 700 | 86 | 27.5 | 28.5 | Power Factor Correction Chokes 700.0uH, 11.5Amp, 86.0mOhm | Data Sheet | ||
| 28 | 340 | 36.6 | 27.5 | 28.5 | Power Factor Correction Chokes 340.0uH, 16.5Amp, 36.6mOhm | Data Sheet | ||
| 28 | 210 | 21.6 | 27.5 | 28.5 | Power Factor Correction Chokes 210.0uH, 21.0Amp, 21.6mOhm | Data Sheet | ||
| 28 | 135 | 14 | 27.5 | 28.5 | Power Factor Correction Chokes 135.0uH, 26.3Amp, 14.0mOhm | Data Sheet | ||
| 28 | 115 | 11.9 | 27.5 | 28.5 | Power Factor Correction Chokes 115.0uH, 28.0Amp, 11.9mOhm | Data Sheet |
