- DIP

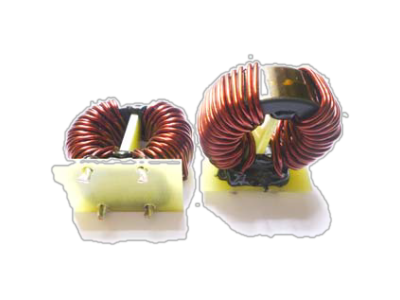

C20540 Serie
• Double wire wound and very compact design.
• Inductance Range:3.0mH to 4.5mH. Custom values are welcomed.
• Excellent EMI suppression capability over wide frequency spectrum.
• High current rating up to 45 Amp.
• Lower core loss, lower distributed capacitance.
• Dielectric strength:1500Vrms.
• Coil mount on UL94-V0 rated plastic header.
• Fixed pin spacing allow easy PCB insertion.
• Operating temperature:-55 to + 130℃ , RoHS & HF compliance.
• Inductance Range:3.0mH to 4.5mH. Custom values are welcomed.
• Excellent EMI suppression capability over wide frequency spectrum.
• High current rating up to 45 Amp.
• Lower core loss, lower distributed capacitance.
• Dielectric strength:1500Vrms.
• Coil mount on UL94-V0 rated plastic header.
• Fixed pin spacing allow easy PCB insertion.
• Operating temperature:-55 to + 130℃ , RoHS & HF compliance.
| Numero di parte | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Scarica | |
|---|---|---|---|---|---|---|
| 50.5 | 54 | 33 | 4,500uH, 3.5mOhm, 40Amp Max. DIP Common Mode Chokes | Data Sheet | ||
| 50.5 | 54 | 33 | 3,000uH, 2.6mOhm, 45Amp Max. DIP Common Mode Chokes | Data Sheet |
