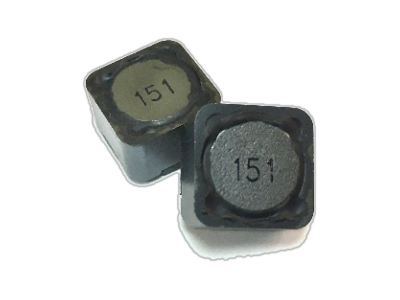

SDRH127B Serie
• Ferrite based SMD inductor with lower core loss.
• Inductance Range: 0.82 uH to 1000.0 uH , custom values are welcomed.
• High current output chokes, up to 38.0 Amp with approx. 30% roll off.
• Low Profile 8.10mm max. height.
• Foot Print 12.5 x 12.5mm max.
• Perfect for high density designs with limited board space.
• Operating Temperature Range -55°C to + 130°C.
• RoHS, HF and AEC-Q200 Standard Compliant
• T & R Qtys: 400 pcs , 13'' Reel.
• Inductance Range: 0.82 uH to 1000.0 uH , custom values are welcomed.
• High current output chokes, up to 38.0 Amp with approx. 30% roll off.
• Low Profile 8.10mm max. height.
• Foot Print 12.5 x 12.5mm max.
• Perfect for high density designs with limited board space.
• Operating Temperature Range -55°C to + 130°C.
• RoHS, HF and AEC-Q200 Standard Compliant
• T & R Qtys: 400 pcs , 13'' Reel.
| Numero di parte | Length (mm) Max | Height (mm) Max | Dimension W (mm) Max | Description | Scarica | ||
|---|---|---|---|---|---|---|---|
| 12.5 | 8.1 | 12.5 | 0.82uH, 20%, 4.67mOhm, 38Amp Max. SMD Shielded Drum Inductor | Data Sheet | |||
| 12.5 | 8.1 | 12.5 | 8.2uH, 20%, 15.2mOhm, 12.2Amp Max. SMD Shielded Drum Inductor | Data Sheet | |||
| 12.5 | 8.1 | 12.5 | 820uH, 20%, 1080mOhm, 1.27Amp Max. SMD Shielded Drum Inductor | Data Sheet | |||
| 12.5 | 8.1 | 12.5 | 82uH, 20%, 135mOhm, 4.06Amp Max. SMD Shielded Drum Inductor | Data Sheet | |||
| 12.5 | 8.1 | 12.5 | 6.8uH, 20%, 13.5mOhm, 13.3Amp Max. SMD Shielded Drum Inductor | Data Sheet | |||
| 12.5 | 8.1 | 12.5 | 680uH, 20%, 920mOhm, 1.39Amp Max. SMD Shielded Drum Inductor | Data Sheet | |||
| 12.5 | 8.1 | 12.5 | 68uH, 20%, 116mOhm, 4.44Amp Max. SMD Shielded Drum Inductor | Data Sheet | |||
| 12.5 | 8.1 | 12.5 | 4.7uH, 20%, 10.86mOhm, 16.5Amp Max. SMD Shielded Drum Inductor | Data Sheet | |||
| 12.5 | 8.1 | 12.5 | 470uH, 20%, 647mOhm, 1.68Amp Max. SMD Shielded Drum Inductor | Data Sheet | |||
| 12.5 | 8.1 | 12.5 | 47uH, 20%, 75.7mOhm, 5.28Amp Max. SMD Shielded Drum Inductor | Data Sheet | 3D Step File | ||
| 12.5 | 8.1 | 12.5 | 3.3uH, 20%, 8.86mOhm, 21.5Amp Max. SMD Shielded Drum Inductor | Data Sheet | |||
| 12.5 | 8.1 | 12.5 | 330uH, 20%, 455mOhm, 2.01Amp Max. SMD Shielded Drum Inductor | Data Sheet | |||
| 12.5 | 8.1 | 12.5 | 33uH, 20%, 52.2mOhm, 6.22Amp Max. SMD Shielded Drum Inductor | Data Sheet | |||
| 12.5 | 8.1 | 12.5 | 2.2uH, 20%, 7.45mOhm, 25.5Amp Max. SMD Shielded Drum Inductor | Data Sheet | |||
| 12.5 | 8.1 | 12.5 | 27.0uH, 20%, 45.0mOhm, 5.0Amp Max. SMD Shielded Drum Inductor | Data Sheet | |||
| 12.5 | 8.1 | 12.5 | 220uH, 20%, 307.5mOhm, 2.43Amp Max. SMD Shielded Drum Inductor | Data Sheet | |||
| 12.5 | 8.1 | 12.5 | 22uH, 20%, 37.2mOhm, 7.57Amp Max. SMD Shielded Drum Inductor | Data Sheet | 3D Step File | ||
| 12.5 | 8.1 | 12.5 | 1.5uH, 20%, 5.61mOhm, 31.1Amp Max. SMD Shielded Drum Inductor | Data Sheet | |||
| 12.5 | 8.1 | 12.5 | 18.0uH, 20%, 32.0mOhm, 3.8Amp Max. SMD Shielded Drum Inductor | Data Sheet | |||
| 12.5 | 8.1 | 12.5 | 150uH, 20%, 214mOhm, 3.01Amp Max. SMD Shielded Drum Inductor | Data Sheet | |||
| 12.5 | 8.1 | 12.5 | 15uH, 20%, 27.8mOhm, 9.66Amp Max. SMD Shielded Drum Inductor | Data Sheet | |||
| 12.5 | 8.1 | 12.5 | 1000uH, 20%, 1330mOhm, 1.14Amp Max. SMD Shielded Drum Inductor | Data Sheet | |||
| 12.5 | 8.1 | 12.5 | 100uH, 20%, 152.5mOhm, 3.64Amp Max. SMD Shielded Drum Inductor | Data Sheet | |||
| 12.5 | 8.1 | 12.5 | 10uH, 20%, 18.6mOhm, 11.2Amp Max. SMD Shielded Drum Inductor | Data Sheet |
