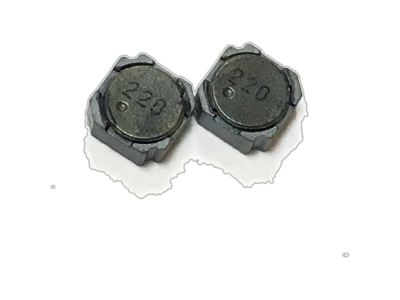

SDRR06830 Serie
• Ferrite based SMD Inductor with lower core loss.
• Inductance Range:1.0uH to 120uH. Custom values are welcomed.
• High current output chokes, upto 8.5 Amp with max. 35% roll off.
• Low Profile 3.0 mm Max. height.
• Foot Print 6.8 x 6.8 mm Max.
• Ideal for LCD driver,DSC
• DVC,Notebook PC and High Density Board Design.
• Operating Temperature Range -55°C to + 130°C, RoHs&HF compliance.
• Inductance Range:1.0uH to 120uH. Custom values are welcomed.
• High current output chokes, upto 8.5 Amp with max. 35% roll off.
• Low Profile 3.0 mm Max. height.
• Foot Print 6.8 x 6.8 mm Max.
• Ideal for LCD driver,DSC
• DVC,Notebook PC and High Density Board Design.
• Operating Temperature Range -55°C to + 130°C, RoHs&HF compliance.
| Numero di parte | Length (mm) Max | Height (mm) Max | Dimension W (mm) Max | Description | Scarica | |
|---|---|---|---|---|---|---|
| 6.8 | 3 | 6.8 | 8.2uH, 25%, 41.64mOhm, 3Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.8 | 3 | 6.8 | 82uH, 25%, 391.3mOhm, 1Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.8 | 3 | 6.8 | 7uH, 25%, 34.9mOhm, 3.6Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.8 | 3 | 6.8 | 68uH, 25%, 330.5mOhm, 1.1Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.8 | 3 | 6.8 | 5.8uH, 25%, 32.07mOhm, 4Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.8 | 3 | 6.8 | 56uH, 25%, 253.5mOhm, 1.2Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.8 | 3 | 6.8 | 4.7uH, 25%, 25.85mOhm, 4.4Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.8 | 3 | 6.8 | 47uH, 25%, 236.4mOhm, 1.3Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.8 | 3 | 6.8 | 3.9uH, 25%, 22.42mOhm, 4.6Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.8 | 3 | 6.8 | 3uH, 25%, 17.72mOhm, 5.4Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.8 | 3 | 6.8 | 39uH, 25%, 193.2mOhm, 1.4Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.8 | 3 | 6.8 | 33uH, 25%, 160.21mOhm, 1.6Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.8 | 3 | 6.8 | 2.2uH, 25%, 13.75mOhm, 6Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.8 | 3 | 6.8 | 27uH, 25%, 132.13mOhm, 1.8Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.8 | 3 | 6.8 | 22uH, 25%, 111.75mOhm, 2Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.8 | 3 | 6.8 | 1.6uH, 25%, 9.96mOhm, 7Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.8 | 3 | 6.8 | 1uH, 25%, 7.21mOhm, 8.5Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.8 | 3 | 6.8 | 18uH, 25%, 99.01mOhm, 2.1Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.8 | 3 | 6.8 | 15uH, 25%, 73.97mOhm, 2.4Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.8 | 3 | 6.8 | 120uH, 25%, 628.2mOhm, 0.8Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.8 | 3 | 6.8 | 12uH, 25%, 57.43mOhm, 2.7Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.8 | 3 | 6.8 | 100uH, 25%, 507.5mOhm, 0.9Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.8 | 3 | 6.8 | 10uH, 25%, 52.68mOhm, 2.9Amp Max. SMD Shielded Drum Inductor | Data Sheet |
