- SMD

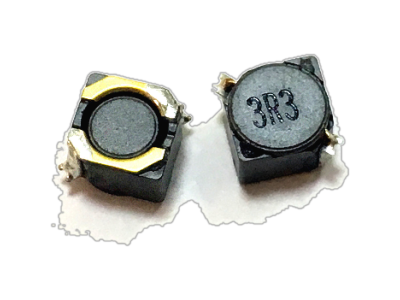

SDRT53 Serie
• Magnetically shielded design inductor to prevent noise radiation.
• Low profile design, 3 mm Max. height.
• Compact size saving board space, 5x5 mm Max. foot print.
• Inductance range: 1.2 ~ 180 uH. Custom values are available upon request.
• Tape & Reel Qtys: 2000 pcs per reel.
• Low profile design, 3 mm Max. height.
• Compact size saving board space, 5x5 mm Max. foot print.
• Inductance range: 1.2 ~ 180 uH. Custom values are available upon request.
• Tape & Reel Qtys: 2000 pcs per reel.
| Numero di parte | Length (mm) Max | Height (mm) Max | Dimension W (mm) Max | Description | Scarica | |
|---|---|---|---|---|---|---|
| 5 | 3 | 5 | 8.2uH, 30%, 117.5mOhm, 1.04Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 8.2uH, 20%, 117.5mOhm, 1.04Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 8.2uH, 10%, 117.5mOhm, 1.04Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 82uH, 30%, 914.8mOhm, 0.32Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 82uH, 20%, 914.8mOhm, 0.32Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 82uH, 10%, 914.8mOhm, 0.32Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 6.8uH, 30%, 108.9mOhm, 1.12Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 6.8uH, 20%, 108.9mOhm, 1.12Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 6.8uH, 10%, 108.9mOhm, 1.12Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 68uH, 30%, 699mOhm, 0.35Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 68uH, 20%, 699mOhm, 0.35Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 68uH, 10%, 699mOhm, 0.35Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 5.6uH, 30%, 100.9mOhm, 1.17Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 5.6uH, 20%, 100.9mOhm, 1.17Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 5.6uH, 10%, 100.9mOhm, 1.17Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 56uH, 30%, 624.5mOhm, 0.41Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 56uH, 20%, 624.5mOhm, 0.41Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 56uH, 10%, 624.5mOhm, 0.41Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 4.7uH, 30%, 72mOhm, 1.32Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 4.7uH, 20%, 72mOhm, 1.32Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 4.7uH, 10%, 72mOhm, 1.32Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 47uH, 30%, 587mOhm, 0.48Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 47uH, 20%, 587mOhm, 0.48Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 47uH, 10%, 587mOhm, 0.48Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 3.3uH, 30%, 49.2mOhm, 1.57Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 3.3uH, 20%, 49.2mOhm, 1.57Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 3.3uH, 10%, 49.2mOhm, 1.57Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 33uH, 30%, 378mOhm, 0.56Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 33uH, 20%, 378mOhm, 0.56Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 33uH, 10%, 378mOhm, 0.56Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 2.2uH, 30%, 31.3mOhm, 2.04Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 2.2uH, 20%, 31.3mOhm, 2.04Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 2.2uH, 10%, 31.3mOhm, 2.04Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 22uH, 30%, 235mOhm, 0.7Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 22uH, 20%, 235mOhm, 0.7Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 22uH, 10%, 235mOhm, 0.7Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 1.8uH, 30%, 27.5mOhm, 2.2Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 1.8uH, 20%, 27.5mOhm, 2.2Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 1.8uH, 10%, 27.5mOhm, 2.2Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 1.2uH, 30%, 23.6mOhm, 2.56Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 1.2uH, 20%, 23.6mOhm, 2.56Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 1.2uH, 10%, 23.6mOhm, 2.56Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 180uH, 30%, 1540mOhm, 0.22Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 180uH, 20%, 1540mOhm, 0.22Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 180uH, 10%, 1540mOhm, 0.22Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 18uH, 30%, 166mOhm, 0.72Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 18uH, 20%, 166mOhm, 0.72Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 18uH, 10%, 166mOhm, 0.72Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 150uH, 30%, 1350mOhm, 0.24Amp Max. SMD Drum Inductor | Data Sheet | ||
| 5 | 3 | 5 | 150uH, 20%, 1350mOhm, 0.24Amp Max. SMD Drum Inductor | Data Sheet |
