- SMD

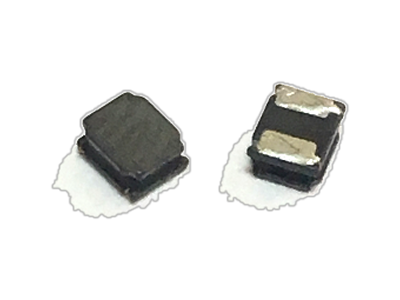

SLNR252012 Serie
• Miniature SMD shielded power inductor.
• Low profile 1.2mm max height.
• Inductance range of 0.47uH to 10.0uH.
• Ideal for DC to DC power converter application.
• Operating temperature range of -55.0 °C ~ +130.0°C.
• RoHS and HF compliant.
• Tape and Reel quantities :2,000pcs, 7” Reel.
• Low profile 1.2mm max height.
• Inductance range of 0.47uH to 10.0uH.
• Ideal for DC to DC power converter application.
• Operating temperature range of -55.0 °C ~ +130.0°C.
• RoHS and HF compliant.
• Tape and Reel quantities :2,000pcs, 7” Reel.
| Numero di parte | Length (mm) Max | Height (mm) Max | Dimension W (mm) Max | Description | Scarica | |
|---|---|---|---|---|---|---|
| 2.6 | 1.2 | 2.1 | 0.68uH, 30%, 65mOhm, 3.06Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 2.6 | 1.2 | 2.1 | 9.1uH, 20%, 550mOhm, 0.97Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 2.6 | 1.2 | 2.1 | 8.2uH, 20%, 520mOhm, 0.99Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 2.6 | 1.2 | 2.1 | 7.5uH, 20%, 490mOhm, 1Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 2.6 | 1.2 | 2.1 | 6.8uH, 20%, 460mOhm, 1.03Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 2.6 | 1.2 | 2.1 | 6.2uH, 20%, 435mOhm, 1.09Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 2.6 | 1.2 | 2.1 | 5.6uH, 20%, 435mOhm, 1.23Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 2.6 | 1.2 | 2.1 | 5.1uH, 20%, 330mOhm, 1.2Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 2.6 | 1.2 | 2.1 | 4.7uH, 20%, 305mOhm, 1.27Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 2.6 | 1.2 | 2.1 | 4.3uH, 20%, 280mOhm, 1.33Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 2.6 | 1.2 | 2.1 | 3.6uH, 20%, 215mOhm, 1.48Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 2.6 | 1.2 | 2.1 | 3.3uH, 20%, 215mOhm, 1.72Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 2.6 | 1.2 | 2.1 | 2.7uH, 20%, 180mOhm, 1.65Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 2.6 | 1.2 | 2.1 | 2.2uH, 30%, 165mOhm, 1.78Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 2.6 | 1.2 | 2.1 | 1.5uH, 30%, 110mOhm, 2.22Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 2.6 | 1.2 | 2.1 | 1.2uH, 30%, 95mOhm, 2.52Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 2.6 | 1.2 | 2.1 | 1uH, 30%, 75mOhm, 2.68Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 2.6 | 1.2 | 2.1 | 15uH, 20%, 1,250mOhm, 0.67Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 2.6 | 1.2 | 2.1 | 12uH, 20%, 850mOhm, 0.8Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 2.6 | 1.2 | 2.1 | 10uH, 20%, 575mOhm, 0.88Amp Max. SMD Shielded Drum Inductor | Data Sheet |
