SLNR4310 Serie

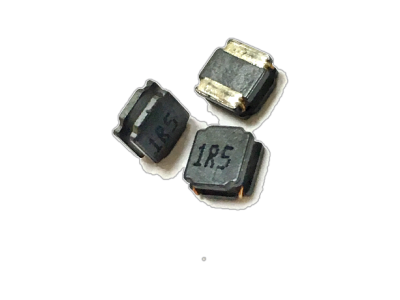

• Miniature SMD Shielded Power Inductor in a 4.3*4.3mm foot print.
• Low profile : 1.0mm max.height.
• Inductance Range of 1.0uH to 47.0uH.
• Ideal for DC to DC power converter application.
• Operating Temperature Range -55°C to + 130°C , RoHs compliance.
• T & R Qtys: 5000 pcs , 13'' Reel.
• Low profile : 1.0mm max.height.
• Inductance Range of 1.0uH to 47.0uH.
• Ideal for DC to DC power converter application.
• Operating Temperature Range -55°C to + 130°C , RoHs compliance.
• T & R Qtys: 5000 pcs , 13'' Reel.
| Numero di parte | Length (mm) Max | Height (mm) Max | Dimension W (mm) Max | Description | Scarica | |
|---|---|---|---|---|---|---|
| 4.3 | 1 | 4.3 | 6.8uH, 20%, 300mOhm, 0.74Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 4.3 | 1 | 4.3 | 4.7uH, 20%, 210mOhm, 0.9Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 4.3 | 1 | 4.3 | 47uH, 20%, 1,810mOhm, 0.24Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 4.3 | 1 | 4.3 | 3.3uH, 20%, 180mOhm, 1.1Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 4.3 | 1 | 4.3 | 33uH, 20%, 1,540mOhm, 0.28Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 4.3 | 1 | 4.3 | 2.2uH, 30%, 150mOhm, 1.15Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 4.3 | 1 | 4.3 | 22uH, 20%, 870mOhm, 0.36Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 4.3 | 1 | 4.3 | 1uH, 30%, 100mOhm, 1.8Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 4.3 | 1 | 4.3 | 15uH, 20%, 510mOhm, 0.47Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 4.3 | 1 | 4.3 | 10uH, 20%, 380mOhm, 0.56Amp Max. SMD Shielded Drum Inductor | Data Sheet |
