- Filter

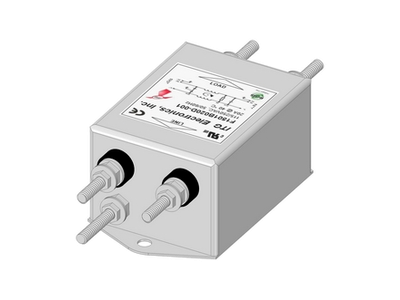

F1501 Serie
• Single stage multi-purpose EMI Filters
• Designed to suppress Common and Differential mode emissions
• Current Rating: 1A to 30A
• Voltage Rating: 115
• 250VAC
• Frequency: 50
• 60Hz
• Hi-Pot Rating: Line to Ground 2250VDC for 2 sec
• Hi-Pot Line to Line: 1450VDC for 2 sec
• Ambient Temperature Range: -25°C To +85°C
• Filter components are encapsulated in a plated metal enclosure
• Leakage Current: 0.45mA max. @ 250VAC 50Hz
• Power Supplies, UPS, Inverters, Converters, Industrial and Exercise equipment, etc.
• cURus recognized and CE certified
• Designed to suppress Common and Differential mode emissions
• Current Rating: 1A to 30A
• Voltage Rating: 115
• 250VAC
• Frequency: 50
• 60Hz
• Hi-Pot Rating: Line to Ground 2250VDC for 2 sec
• Hi-Pot Line to Line: 1450VDC for 2 sec
• Ambient Temperature Range: -25°C To +85°C
• Filter components are encapsulated in a plated metal enclosure
• Leakage Current: 0.45mA max. @ 250VAC 50Hz
• Power Supplies, UPS, Inverters, Converters, Industrial and Exercise equipment, etc.
• cURus recognized and CE certified
| Numero di parte | Description | Scarica |
|---|---|---|
| Single stage multi-purpose EMI Filters, 30 Amp, M4 screw for input / output connections | Data Sheet | |
| Single stage multi-purpose EMI Filters, 20 Amp, M4 screw for input / output connections | Data Sheet | |
| Single stage multi-purpose EMI Filters, 10 Amp, M4 screw for input / output connections | Data Sheet | |
| Single stage multi-purpose EMI Filters, 6 Amp, M4 screw for input / output connections | Data Sheet |
