- SMD

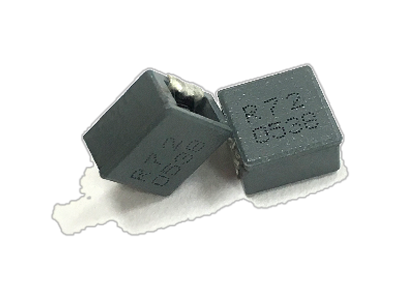

SC3011 Serie
• 0.30” Package SMD high current inductor.
• Low profile 3.0mm maximum height.
• Ideal for DC to DC converter, VRM & High density board design.
• Low leakage flux.
• Shielded inductor design.
• Suitable for IR reflow and wave solder process.
• T & R Qtys: 1,700pcs on a 13” Reel.
• RoHS and HF Compliant.
• Low profile 3.0mm maximum height.
• Ideal for DC to DC converter, VRM & High density board design.
• Low leakage flux.
• Shielded inductor design.
• Suitable for IR reflow and wave solder process.
• T & R Qtys: 1,700pcs on a 13” Reel.
• RoHS and HF Compliant.
| Numero di parte | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Scarica | |
|---|---|---|---|---|---|---|
| 3 | 8.3 | 7.7 | 0.91uH, 20%, 7mOhm, 18Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 3 | 8.9 | 7.7 | 0.56uH, 20%, 3.7mOhm, 26.5Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 3 | 8.9 | 7.7 | 0.3uH, 20%, 2.1mOhm, 34Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 3 | 9.3 | 7.7 | 0.11uH, 20%, 0.63mOhm, 46Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 3 | 8.3 | 7.7 | 1.35uH, 20%, 8.45mOhm, 17Amp Max. SMD Flat Wire Inductor | Data Sheet |
