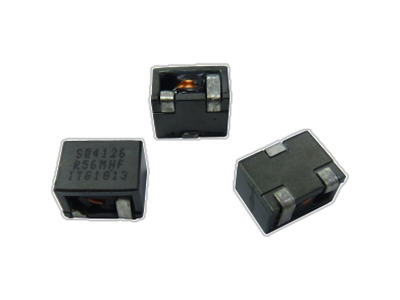

SQ4126 Serie
• Ferrite based SMD Inductor with lower core loss.
• Inductance Range:0.42uH to 10.00uH,Custom values are welcomed.
• High current output chokes, upto 45.0 Amp with approx. 20% roll off.
• Low Profile 6.65mm Max. height.
• Foot Print 8.10 x 10.30 mm Max.
• Ideal for VRM, POL, Notebook regulators,Graphics cards and battery power systems.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
• T & R Qtys: 700 pcs , 13'' Reel.
• Inductance Range:0.42uH to 10.00uH,Custom values are welcomed.
• High current output chokes, upto 45.0 Amp with approx. 20% roll off.
• Low Profile 6.65mm Max. height.
• Foot Print 8.10 x 10.30 mm Max.
• Ideal for VRM, POL, Notebook regulators,Graphics cards and battery power systems.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
• T & R Qtys: 700 pcs , 13'' Reel.
| Numero di parte | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Scarica | |
|---|---|---|---|---|---|---|
| 6.65 | 10.3 | 8.1 | 0.33uH, 20%, 0.99mOhm, 42Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 6.65 | 8.1 | 10.3 | 0.68uH, 20%, 1.2mOhm, 29Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 6.65 | 8.1 | 10.3 | 0.56uH, 20%, 1.2mOhm, 36Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 6.65 | 8.1 | 10.3 | 0.42uH, 20%, 1.2mOhm, 45Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 6.65 | 8.1 | 10.3 | 6.8uH, 20%, 8.6mOhm SMD Flat Wire Inductor | Data Sheet | ||
| 6.65 | 8.1 | 10.3 | 5.6uH, 20%, 8.6mOhm, 9.4Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 6.65 | 8.1 | 10.3 | 4.7uH, 20%, 8.6mOhm, 12Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 6.65 | 8.1 | 10.3 | 3.3uH, 20%, 7.5mOhm, 14.5Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 6.65 | 8.1 | 10.3 | 2.2uH, 20%, 6.35mOhm, 18Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 6.65 | 8.1 | 10.3 | 1.5uH, 20%, 3.9mOhm, 22Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 6.65 | 8.1 | 10.3 | 1uH, 20%, 2.2mOhm, 26Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 6.65 | 8.1 | 10.3 | 10uH, 20%, 8.6mOhm, 5.3Amp Max. SMD Flat Wire Inductor | Data Sheet |
