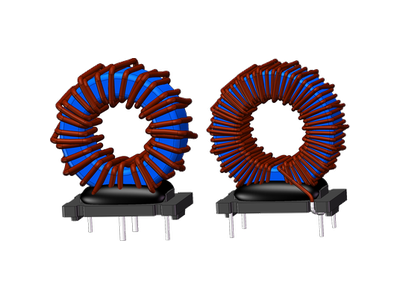

PFC183209B Serie

• Alloy powder based DIP Inductor with lower core loss
• No thermal aging concerns
• Low leakage magnetic flux
• Elimination for impulse (EMI) noise
• Inductance Range: 100.0uH to 1000.0uH, custom values are welcomed
• High current output chokes, up to 39.8 Amp with approx. 50% roll off
• Designed and developed for Power Factor Correction applications
• Foot Print: 46.5×27.0mm max., 53.0 max. Height
• Surge Voltage: 400VDC
• Operating Temperature Range: -55°C to + 130°C
• RoHs & HF compliant

Data Sheet

Specificazione di PFC183209B Serie

Biblioteca Campione Preventivo Domanda

Numero di parte	Height (mm) Max	Inductance L (uH)	DCR @25℃ (mΩ)	Dimension L (mm) Max	Dimension W (mm) Max	Description	Scarica
PFC183209B-102K	53	1000	183	46.5	27	Power Factor Correction Chokes 1000.0uH, 12.5Amp, 183.0mOhm	Data Sheet
PFC183209B-821K	53	820	137.5	46.5	27	Power Factor Correction Chokes 820.0uH, 13.8Amp, 135.7mOhm	Data Sheet
PFC183209B-691K	53	690	104.5	46.5	27	Power Factor Correction Chokes 690.0uH, 15.1Amp, 104.5mOhm	Data Sheet
PFC183209B-561K	53	560	78.5	46.5	27	Power Factor Correction Chokes 560.0uH, 16.8Amp, 78.5mOhm	Data Sheet
PFC183209B-471K	53	470	68	46.5	27	Power Factor Correction Chokes 470.0uH, 18.3Amp, 68.0mOhm	Data Sheet
PFC183209B-351K	53	350	49	46.5	27	Power Factor Correction Chokes 350.0uH, 21.1Amp, 49.0mOhm	Data Sheet	3D Step File
PFC183209B-251K	53	250	33	46.5	27	Power Factor Correction Chokes 250.0uH, 24.9Amp, 33.5mOhm	Data Sheet
PFC183209B-201K	53	200	29.5	46.5	27	Power Factor Correction Chokes 200.0uH, 27.9Amp, 29.5mOhm	Data Sheet
PFC183209B-101K	53	100	17	46.5	27	Power Factor Correction Chokes 100.0uH, 39.8Amp, 17.0mOhm	Data Sheet
