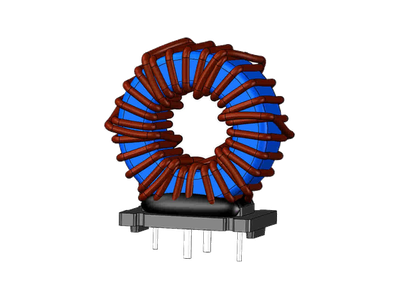

PFC199224D Serie

• Alloy powder based DIP Inductor with lower core loss
• No thermal aging concerns
• Low leakage magnetic flux
• Elimination for impulse (EMI) noise
• Inductance Range: 100.0uH to 1000.0uH, custom values are welcomed
• High current output chokes, up to 44.9 Amp with approx. 50% roll off
• Designed and developed for Power Factor Correction applications
• Foot Print: 50.5×27.0mm max., 57.0 max. Height
• Surge Voltage: 400VDC
• Operating Temperature Range: -55°C to + 130°C
• RoHs & HF compliant

Data Sheet

Specificazione di PFC199224D Serie

Biblioteca Campione Preventivo Domanda

Numero di parte	Height (mm) Max	Inductance L (uH)	DCR @25℃ (mΩ)	Dimension L (mm) Max	Dimension W (mm) Max	Description	Scarica
PFC199224D-102K	57	1000	121.5	50.5	27	Power Factor Correction Chokes 1000.0uH, 14.3Amp, 121.5mOhm	Data Sheet
PFC199224D-821K	57	820	95	50.5	27	Power Factor Correction Chokes 820.0uH, 16.0Amp, 95.0mOhm	Data Sheet
PFC199224D-691K	57	690	76.5	50.5	27	Power Factor Correction Chokes 690.0uH, 17.4Amp, 76.5mOhm	Data Sheet
PFC199224D-561K	57	560	61	50.5	27	Power Factor Correction Chokes 560.0uH, 19.3Amp, 61.0mOhm	Data Sheet
PFC199224D-471K	57	470	48	50.5	27	Power Factor Correction Chokes 470.0uH, 21.1Amp, 48.0mOhm	Data Sheet
PFC199224D-351K	57	350	38	50.5	27	Power Factor Correction Chokes 350.0uH, 24.4Amp, 38.0mOhm	Data Sheet
PFC199224D-251K	57	250	32	50.5	27	Power Factor Correction Chokes 250.0uH, 29.0Amp, 32.0mOhm	Data Sheet
PFC199224D-201K	57	200	23	50.5	27	Power Factor Correction Chokes 200.0uH, 32.4Amp, 23.0mOhm	Data Sheet
PFC199224D-101K	57	100	13.8	50.5	27	Power Factor Correction Chokes 100.0uH, 44.9Amp, 13.8mOhm	Data Sheet
