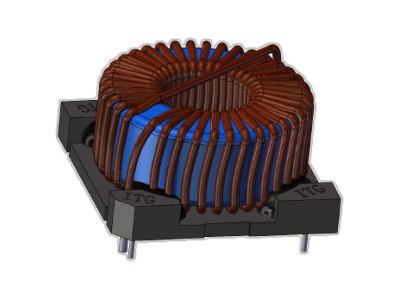

PFC212138A Serie

• Alloy powder based DIP Inductor with lower core loss
• No thermal aging concerns
• Low leakage magnetic flux
• Elimination for impulse (EMI) noise
• Inductance Range: 105.0uH to 1000.0uH, custom values are welcomed
• High current output chokes, up to 55.5 Amp with approx. 50% roll off
• Designed and developed for Power Factor Correction applications
• Foot Print: 53.9×53.9mm max., 35.0 max. Height
• Surge Voltage: 400VDC
• Operating Temperature Range: -55°C to + 130°C
• RoHs & HF compliant

Data Sheet

Specificazione di PFC212138A Serie

Biblioteca Campione Preventivo Domanda

Numero di parte	Height (mm) Max	Inductance L (uH)	DCR @25℃ (mΩ)	Dimension L (mm) Max	Dimension W (mm) Max	Description	Scarica
PFC212138A-102K	35	1000	106.5	53.9	53.9	1000uH, 10%, 106.5mOhm, 18.0Amp Max. DIP PFC Chokes	Data Sheet
PFC212138A-821K	35	820	81	53.9	53.9	820uH, 10%, 81.0mOhm, 19.90Amp Max. DIP PFC Chokes	Data Sheet
PFC212138A-681K	35	680	74	53.9	53.9	680uH, 10%, 74.0mOhm, 21.90Amp Max. DIP PFC Chokes	Data Sheet
PFC212138A-501K	35	500	57	53.9	53.9	500uH, 10%, 57.0mOhm, 25.5Amp Max. DIP PFC Chokes	Data Sheet
PFC212138A-471K	35	470	54.5	53.9	53.9	470uH, 10%, 54.50mOhm, 26.30Amp Max. DIP PFC Chokes	Data Sheet	3D Step File
PFC212138A-351K	35	350	40	53.9	53.9	350uH, 10%, 40.0mOhm, 30.5Amp Max. DIP PFC Chokes	Data Sheet
PFC212138A-251K	35	250	26.5	53.9	53.9	250uH, 10%, 26.5mOhm, 36.1Amp Max. DIP PFC Chokes	Data Sheet
PFC212138A-201K	35	205	20.5	53.9	53.9	205uH, 10%, 20.5mOhm, 39.9Amp Max. DIP PFC Chokes	Data Sheet
PFC212138A-101K	35	105	14.5	52.9	53.9	105uH, 10%, 14.5mOhm, 55.5Amp Max. DIP PFC Chokes	Data Sheet
