- SMD

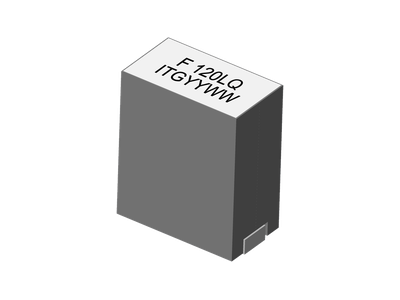

AFA40476Q Serie
• AEC-Q200 Compliant .
• Ferrite based SMD inductor with lower core loss.
• Inductance Range: 80.0nH to 120.0nH, Custom values are welcomed.High current output chokes, up to 160.0 Amp with approx. 20% roll off.
• Low Profile 12.00 mm Max. height .
• Foot Print 10.00 x 6.00 mm .
• Perfect for high density designs with limited board space.
• Operating frequency up to 5.0 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance .
• T & R Qtys: 300 pcs , 13'' Reel ;
• Ferrite based SMD inductor with lower core loss.
• Inductance Range: 80.0nH to 120.0nH, Custom values are welcomed.High current output chokes, up to 160.0 Amp with approx. 20% roll off.
• Low Profile 12.00 mm Max. height .
• Foot Print 10.00 x 6.00 mm .
• Perfect for high density designs with limited board space.
• Operating frequency up to 5.0 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance .
• T & R Qtys: 300 pcs , 13'' Reel ;
| Numero di parte | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Scarica | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 0.12 | 0.125 | 777 | 105 | 88 | 10 | 6 | 120.0nH, 15%, 0.125mOhm, 105.0A Max. SMD Power Bead | Data Sheet | ||
| 12 | 0.1 | 0.125 | 77 | 125 | 105 | 10 | 6 | 100.0nH, 15%, 0.125mOhm, 125.0A Max. SMD Power Bead | Data Sheet | ||
| 12 | 0.09 | 0.125 | 77 | 130 | 110 | 10 | 6 | 90.0nH, 15%, 0.125mOhm, 130.0A Max. SMD Power Bead | Data Sheet | ||
| 12 | 0.08 | 0.125 | 77 | 160 | 140 | 10 | 6 | 80.0nH, 15%, 0.125mOhm, 160.0A Max. SMD Power Bead | Data Sheet |
