- SMD

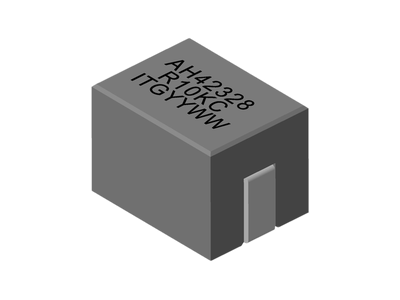

AH42328C Serie
• T & R Qtys: 500 pcs , 13'' Reel.
• Operating Temperature Range -55°C to + 130°C.
• Rohs and HF Compliance Component.
• Operating frequency up to 5.0 MHz.
• Operating Temperature Range -55°C to + 130°C.
• Rohs and HF Compliance Component.
• Operating frequency up to 5.0 MHz.
| Numero di parte | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Scarica | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 10.9 | 0.1 | 0.18 | 74 | 125 | 105 | 8 | 10.6 | 100nH, 10%, 0.18mOhm, 125A Max. Power Bead SMD | Data Sheet |
