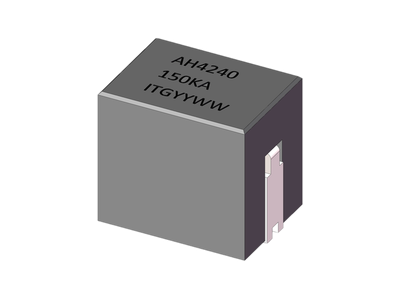

AH4240 Serie

• Ferrite based SMD inductor with lower core loss.
• Inductance range: 70.0 nH to 330.0 nH , custom values are welcomed.
• High current output chokes,up to 200.0 Amp with approx. 20% roll off.
• Low profile 10.00 mm - 10.60 mm typical Height.
• 10.90 x 8.00 mm Foot Print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency of up to 5.0 MHz.
• Operating temperature range of -55 C to + 130 C.
• T & R Qty’s: 350pcs, 13'' Reel. RoHS & HF compliant.

Data Sheet

Specificazione di AH4240 Serie

Biblioteca Campione Preventivo Domanda

Numero di parte	Height (mm) Max	Inductance L (uH)	DCR @25℃ (mΩ)	Irms (A) @ΔT 40℃	Isat2 (A) @25℃ Drop 20%	Isat6 (A) @100℃ Drop 20%	Dimension L (mm) Max	Dimension W (mm) Max	Description	Scarica
AH4240A-330K	10	0.33	0.165	73	30	27	10.9	8	0.33uH, 10%, 0.165mOhm, 30Amp Max. SMD Power bead	Data Sheet
AH4240A-300K	10	0.3	0.165	73	35	31	10.9	8	0.30uH, 10%, 0.165mOhm, 35Amp Max. SMD Power bead	Data Sheet
AH4240A-270K	10	0.27	0.165	73	43	38	10.9	8	0.27uH, 10%, 0.165mOhm, 43Amp Max. SMD Power bead	Data Sheet
AH4240A-250K	10.1	0.25	0.165	73	49	42	10.9	8	0.25uH, 10%, 0.165mOhm, 49Amp Max. SMD Power bead	Data Sheet
AH4240A-220K	10.1	0.22	0.165	73	55	49	10.9	8	0.22uH, 10%, 0.165mOhm, 55Amp Max. SMD Power bead	Data Sheet
AH4240A-180K	10.2	0.18	0.165	73	69	63	10.9	8	0.18uH, 10%, 0.165mOhm, 69Amp Max. SMD Power bead	Data Sheet
AH4240A-150K	10.2	0.15	0.165	73	85	76	10.9	8	0.15uH, 10%, 0.165mOhm, 85Amp Max. SMD Power bead	Data Sheet
AH4240A-120K	10.3	0.12	0.165	73	110	98	10.9	8	0.12uH, 10%, 0.165mOhm, 110Amp Max. SMD Power bead	Data Sheet
AH4240A-100K	10.3	0.1	0.165	73	135	115	10.9	8	0.10uH, 10%, 0.165mOhm, 135Amp Max. SMD Power bead	Data Sheet
AH4240A-70K	10.6	0.07	0.165	73	200	160	10.9	8	0.07uH, 10%, 0.165mOhm, 200Amp Max. SMD Power bead	Data Sheet
