- SMD

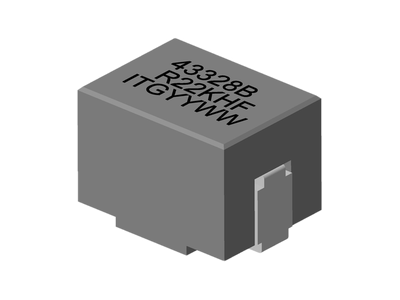

AH43328B Serie
• Ferrite based SMD Inductor with lower core loss.
• Inductance Range: 105.0 nH to 300.0 nH. Custom values are welcomed.
• High current output chokes, upto 107.0 Amp with max. 20% roll off.
• Low Profile 7.90 mm Max. height.
• Foot Print 11.10 x 8.10 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 2.0 MHz.
• Operating Temperature Range -55°C to + 130°C
• T & R Qty’s: 450pcs, 13'' Reel. RoHS & HF compliant.
• Inductance Range: 105.0 nH to 300.0 nH. Custom values are welcomed.
• High current output chokes, upto 107.0 Amp with max. 20% roll off.
• Low Profile 7.90 mm Max. height.
• Foot Print 11.10 x 8.10 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 2.0 MHz.
• Operating Temperature Range -55°C to + 130°C
• T & R Qty’s: 450pcs, 13'' Reel. RoHS & HF compliant.
| Numero di parte | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Scarica | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 7.9 | 0.3 | 0.2 | 70 | 36 | 32 | 11.1 | 8.1 | 0.3uH, 10%, 0.195mOhm, 36Amp Max. SMD Power bead | Data Sheet | ||
| 7.9 | 0.22 | 0.2 | 70 | 56 | 51 | 11.1 | 8.1 | 0.22uH, 10%, 0.195mOhm, 56Amp Max. SMD Power bead | Data Sheet | ||
| 7.9 | 0.18 | 0.2 | 70 | 71 | 65 | 11.1 | 8.1 | 0.18uH, 10%, 0.195mOhm, 71Amp Max. SMD Power bead | Data Sheet | ||
| 7.9 | 0.17 | 0.2 | 70 | 76 | 70 | 11.1 | 8.1 | 0.17uH, 10%, 0.195mOhm, 76Amp Max. SMD Power bead | Data Sheet | ||
| 7.9 | 0.15 | 0.2 | 70 | 86 | 80 | 11.1 | 8.1 | 0.15uH, 10%, 0.195mOhm, 86Amp Max. SMD Power bead | Data Sheet | ||
| 8 | 0.12 | 0.2 | 70 | 103 | 94 | 11.1 | 8.1 | 0.12uH, 10%, 0.195mOhm, 103Amp Max. SMD Power bead | Data Sheet | ||
| 8.1 | 0.105 | 0.2 | 70 | 107 | 100 | 11.1 | 8.1 | 0.105uH, 10%, 0.195mOhm, 107Amp Max. SMD Power bead | Data Sheet |
