- SMD

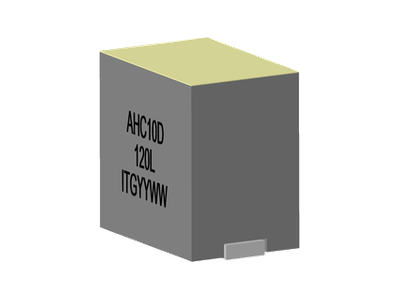

AHC10D Serie
| Numero di parte | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 20℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Scarica |
|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 7 | 0.185 | 62 | 80 | 75 | 10 | 7 | 0.15uH, 15%, 0.185mOhm, 80Amp Max. SMD Power bead | ||
| 10 | 0.33 | 0.185 | 62 | 43 | 35 | 10 | 7 | 0.33uH, 15%, 0.185mOhm, 43Amp Max. SMD Power bead | ||
| 10 | 0.27 | 0.185 | 62 | 46 | 40 | 10 | 7 | 0.27uH, 15%, 0.185mOhm, 46Amp Max. SMD Power bead | ||
| 10 | 0.22 | 0.185 | 62 | 56 | 45 | 10 | 7 | 0.22uH, 15%, 0.185mOhm, 56Amp Max. SMD Power bead | ||
| 10 | 0.18 | 0.185 | 62 | 70 | 60 | 10 | 7 | 0.18uH, 15%, 0.185mOhm, 70Amp Max. SMD Power bead | ||
| 10 | 0.12 | 0.185 | 62 | 95 | 82 | 10 | 7 | 0.12uH, 15%, 0.185mOhm, 95Amp Max. SMD Power bead | ||
| 10 | 0.1 | 0.185 | 62 | 115 | 100 | 10 | 7 | 0.1uH, 105%, 0.185mOhm, 115Amp Max. SMD Power bead | ||
| 10 | 0.09 | 0.185 | 62 | 125 | 115 | 10 | 7 | 0.09uH, 10%, 0.185mOhm, 125Amp Max. SMD Power bead |
