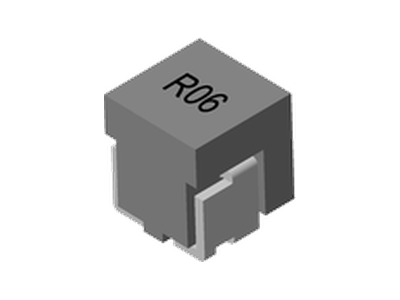

SL1618 Serie
• Ferrite based SMD Inductor with lower core loss.
• Custom values are welcomed.
• High current output chokes, upto 30.0 Amp with approx. 20% roll off.
• Low Profile 4.5mm Max. height.
• Foot Print 4.1 x 4.0 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
• Custom values are welcomed.
• High current output chokes, upto 30.0 Amp with approx. 20% roll off.
• Low Profile 4.5mm Max. height.
• Foot Print 4.1 x 4.0 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
| Numero di parte | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Scarica | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4.5 | 0.065 | 0.29 | 22 | 30 | 22 | 4.1 | 4 | 0.065uH, 15%, 0.29mOhm, 30Amp Max. SMD Power bead | Data Sheet | ||
| 4.5 | 0.065 | 0.25 | 24 | 30 | 22 | 4.1 | 4 | 0.065uH, 15%, 0.25mOhm, 30Amp Max. SMD Power bead | Data Sheet |
