- SMD

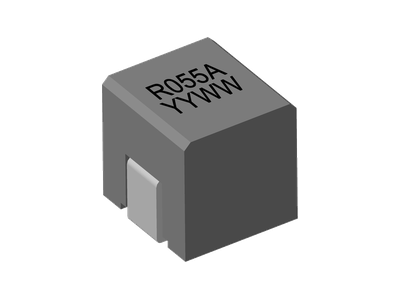

SL2224A Serie
• Open Circuit Inductance (OCL): 55.0nH ± 20% at 100KHz, 0.1Vrms, 0Adc.
• Saturation Point: Isat1=66.0Adc @ 25℃ , Isat2=63.0Adc @ 75℃ , Isat3=60.0Adc @ 100℃
• this DC current that will cause inductance to drop approximately by 20%.
• L @ Isat: 39.0nH Min. at Isat1=66.0A.
• Irms: 50.0A , DC current that causes an approximate temperature rise (△T) of 40℃.
• Derating is necessary for AC currents. PCB pad layout,trace thickness and width,air-flow and
• proximity of other heat generating components will affect the temperature rise.
• DCR: 0.20 ± 5% mΩ measured from point "a" to point"b", as shown on the left
• mechanical drawing (Ta=25℃).
• Saturation Point: Isat1=66.0Adc @ 25℃ , Isat2=63.0Adc @ 75℃ , Isat3=60.0Adc @ 100℃
• this DC current that will cause inductance to drop approximately by 20%.
• L @ Isat: 39.0nH Min. at Isat1=66.0A.
• Irms: 50.0A , DC current that causes an approximate temperature rise (△T) of 40℃.
• Derating is necessary for AC currents. PCB pad layout,trace thickness and width,air-flow and
• proximity of other heat generating components will affect the temperature rise.
• DCR: 0.20 ± 5% mΩ measured from point "a" to point"b", as shown on the left
• mechanical drawing (Ta=25℃).
| Numero di parte | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Scarica | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 0.055 | 0.2 | 50 | 66 | 60 | 5.7 | 5.35 | 55.0nH, 20%, 0.20mOhm, 66.0A Max. SMD Power Bead | Data Sheet |
