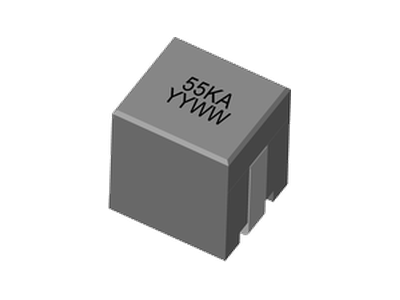

SL29327A Serie
Ferrite based SMD inductor with lower core loss.Inductance range: 55.0 nH to 120.0 nH , custom values are welcomed.High current output chokes up to 110.0 Amp with approx. 20% roll off.Low profile 8.00 mm Max. height.7.20 x 6.50 mm Foot Print.Ideal for Buck Converter, VRM & High Density Board Design.Operating frequency of up to 5.0MHz.Operating temperature range of -55°C to + 130°C. RoHS & HF compliant.T & R Qty’s: 600pcs, 13'' Reel.
| Numero di parte | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Scarica | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 8 | 0.12 | 0.2 | 63 | 54 | 46 | 7.2 | 6.5 | 120nH, 15%, 0.2mOhm, 54.0Amp Max, SMD Power Bead | Data Sheet | ||
| 8 | 0.1 | 0.2 | 63 | 65 | 55 | 7.2 | 6.5 | 100nH, 15%, 0.2mOhm, 65.0Amp Max, SMD Power Bead | Data Sheet | ||
| 8 | 0.07 | 0.2 | 63 | 92 | 78 | 7.2 | 6.5 | 70nH, 15%, 0.2mOhm, 92.0Amp Max, SMD Power Bead | Data Sheet | ||
| 8 | 0.055 | 0.2 | 63 | 110 | 100 | 7.2 | 6.5 | 55nH, 10%, 0.2mOhm, 110.0Amp Max, SMD Power Bead | Data Sheet |
