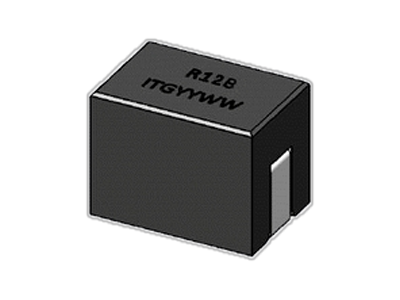

SL37326B Serie
• Ferrite based SMD Inductor with lower core loss.
• Custom values are welcomed.
• High current output chokes, upto 83.0 Amp with approx. 20% roll off.
• Low Profile 8.0mm Max. height.
• Foot Print 9.50 x 6.30 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
• T & R Qtys: 650 pcs , 13'' Reel.
• Custom values are welcomed.
• High current output chokes, upto 83.0 Amp with approx. 20% roll off.
• Low Profile 8.0mm Max. height.
• Foot Print 9.50 x 6.30 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
• T & R Qtys: 650 pcs , 13'' Reel.
| Numero di parte | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Scarica | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 8 | 0.12 | 0.21 | 61 | 83 | 75 | 9.5 | 6.3 | 0.12uH, 10%, 0.21mOhm, 83Amp Max. SMD Power bead | Data Sheet |
