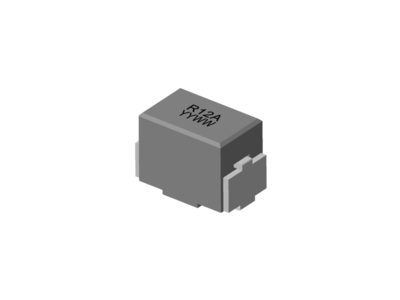

SL42326 Serie
• Ferrite based SMD Inductor with lower core loss.
• Inductance Range:100nH to 180nH,Custom values are welcomed.
• High current output chokes, upto 90 Amp with approx. 20% roll off.
• Low Profile 8.1mm Max. height.
• Foot Print 10.8 x 6.3 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
• Inductance Range:100nH to 180nH,Custom values are welcomed.
• High current output chokes, upto 90 Amp with approx. 20% roll off.
• Low Profile 8.1mm Max. height.
• Foot Print 10.8 x 6.3 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
| Numero di parte | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Scarica | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 8.1 | 0.18 | 0.2 | 61 | 51 | 42 | 10.9 | 6.3 | 0.18uH, 10%, 0.2mOhm, 51Amp Max. SMD Power bead | Data Sheet | ||
| 8.1 | 0.18 | 0.22 | 58 | 51 | 42 | 10.8 | 6.3 | 0.18uH, 10%, 0.22mOhm, 51Amp Max. SMD Power bead | Data Sheet | ||
| 8.1 | 0.15 | 0.2 | 61 | 63 | 54 | 10.9 | 6.3 | 0.15uH, 10%, 0.2mOhm, 63Amp Max. SMD Power bead | Data Sheet | ||
| 8.1 | 0.15 | 0.22 | 58 | 63 | 54 | 10.8 | 6.3 | 0.15uH, 10%, 0.22mOhm, 63Amp Max. SMD Power bead | Data Sheet | ||
| 8.1 | 0.12 | 0.2 | 61 | 76 | 68 | 10.9 | 6.3 | 0.12uH, 10%, 0.2mOhm, 76Amp Max. SMD Power bead | Data Sheet | ||
| 8.1 | 0.12 | 0.22 | 58 | 76 | 68 | 10.8 | 6.3 | 0.12uH, 10%, 0.22mOhm, 76Amp Max. SMD Power bead | Data Sheet | ||
| 8.1 | 0.1 | 0.2 | 61 | 90 | 78 | 10.9 | 6.3 | 0.1uH, 10%, 0.2mOhm, 90Amp Max. SMD Power bead | Data Sheet | ||
| 8.1 | 0.1 | 0.22 | 58 | 90 | 78 | 10.8 | 6.3 | 0.1uH, 10%, 0.22mOhm, 90Amp Max. SMD Power bead | Data Sheet |
