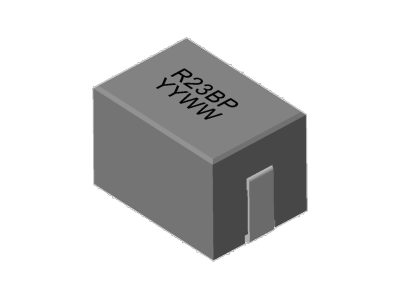

SL4330xP Serie
• Ferrite based SMD Inductor with lower core loss.
• Inductance Range:120nH to 510nH. Custom values are welcomed.
• High current output chokes, upto 94 Amp with max. 20% roll off.
• Low Profile 7.5mm Max. height.
• Foot Print 11.0 x 7.2 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C ; RoHs compliance.
• Inductance Range:120nH to 510nH. Custom values are welcomed.
• High current output chokes, upto 94 Amp with max. 20% roll off.
• Low Profile 7.5mm Max. height.
• Foot Print 11.0 x 7.2 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C ; RoHs compliance.
| Numero di parte | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Scarica | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 7.5 | 0.51 | 0.29 | 55 | 19 | 17 | 11 | 7.2 | 0.51uH, 15%, 0.29mOhm, 19Amp Max. SMD Power bead | Data Sheet | ||
| 7.5 | 0.51 | 0.25 | 59 | 19 | 17 | 11 | 7.2 | 0.51uH, 15%, 0.245mOhm, 19Amp Max. SMD Power bead | Data Sheet | ||
| 7.5 | 0.4 | 0.29 | 55 | 26 | 23 | 11 | 7.2 | 0.4uH, 15%, 0.29mOhm, 26Amp Max. SMD Power bead | Data Sheet | ||
| 7.5 | 0.4 | 0.25 | 59 | 26 | 23 | 11 | 7.2 | 0.4uH, 15%, 0.245mOhm, 26Amp Max. SMD Power bead | Data Sheet | ||
| 7.5 | 0.3 | 0.29 | 55 | 36 | 29 | 11 | 7.2 | 0.3uH, 15%, 0.29mOhm, 36Amp Max. SMD Power bead | Data Sheet | ||
| 7.5 | 0.3 | 0.25 | 59 | 36 | 29 | 11 | 7.2 | 0.3uH, 15%, 0.245mOhm, 36Amp Max. SMD Power bead | Data Sheet | ||
| 7.5 | 0.23 | 0.29 | 55 | 50 | 43 | 11 | 7.2 | 0.23uH, 10%, 0.29mOhm, 50Amp Max. SMD Power bead | Data Sheet | ||
| 7.5 | 0.23 | 0.25 | 59 | 50 | 43 | 11 | 7.2 | 0.23uH, 10%, 0.245mOhm, 50Amp Max. SMD Power bead | Data Sheet | ||
| 7.5 | 0.21 | 0.29 | 55 | 51 | 44 | 11 | 7.2 | 0.21uH, 10%, 0.29mOhm, 51Amp Max. SMD Power bead | Data Sheet | ||
| 7.5 | 0.21 | 0.25 | 59 | 51 | 44 | 11 | 7.2 | 0.21uH, 10%, 0.245mOhm, 51Amp Max. SMD Power bead | Data Sheet | ||
| 7.5 | 0.18 | 0.29 | 55 | 63 | 54 | 11 | 7.2 | 0.18uH, 10%, 0.29mOhm, 63Amp Max. SMD Power bead | Data Sheet | ||
| 7.5 | 0.18 | 0.25 | 59 | 63 | 54 | 11 | 7.2 | 0.18uH, 10%, 0.245mOhm, 63Amp Max. SMD Power bead | Data Sheet | ||
| 7.5 | 0.15 | 0.29 | 55 | 72 | 61 | 11 | 7.2 | 0.15uH, 10%, 0.29mOhm, 72Amp Max. SMD Power bead | Data Sheet | ||
| 7.5 | 0.15 | 0.25 | 59 | 72 | 61 | 11 | 7.2 | 0.15uH, 10%, 0.245mOhm, 72Amp Max. SMD Power bead | Data Sheet | ||
| 7.5 | 0.12 | 0.29 | 55 | 94 | 80 | 11 | 7.2 | 0.12uH, 10%, 0.29mOhm, 94Amp Max. SMD Power bead | Data Sheet | ||
| 7.5 | 0.12 | 0.25 | 59 | 94 | 80 | 11 | 7.2 | 0.12uH, 10%, 0.245mOhm, 94Amp Max. SMD Power bead | Data Sheet |
