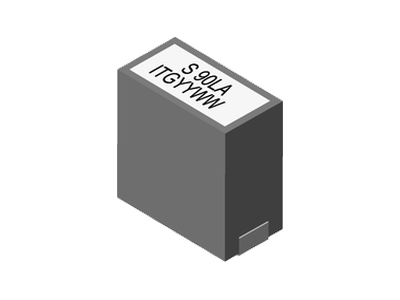

SLA36385A Serie
• Ferrite based SMD inductor with lower core loss.
• Inductance Range: 35.0nH to 470.0nH, Custom values are welcomed.
• High current output chokes, up to 230.0 Amp with approx. 20% roll off
• Low Profile 9.50 mm max. height.
• Foot Print 9.00 x 5.20 mm
• 5.00 mm
• Ideal for high density designs with limited board space.
• Operating frequency up to 5.0 MHz.
• Operating Temperature Range -55°C to + 130°C. RoHS & HF compliant.
• T & R Qtys: 500 pcs , 13'' Reel.
• Inductance Range: 35.0nH to 470.0nH, Custom values are welcomed.
• High current output chokes, up to 230.0 Amp with approx. 20% roll off
• Low Profile 9.50 mm max. height.
• Foot Print 9.00 x 5.20 mm
• 5.00 mm
• Ideal for high density designs with limited board space.
• Operating frequency up to 5.0 MHz.
• Operating Temperature Range -55°C to + 130°C. RoHS & HF compliant.
• T & R Qtys: 500 pcs , 13'' Reel.
| Numero di parte | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Scarica | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 9.5 | 0.47 | 0.125 | 63 | 16 | 14 | 9 | 5 | 470nH, 15%, 0.125mOhm, 16A Max. Power Bead SMD | Data Sheet | ||
| 9.5 | 0.33 | 0.125 | 63 | 23 | 19 | 9 | 5 | 330nH, 15%, 0.125mOhm, 23A MAX. Poewr Bead SMD | Data Sheet | ||
| 9.5 | 0.27 | 0.125 | 63 | 30 | 26 | 9 | 5 | 270nH, 15%, 0.125mOhm, 30A MAX. Power Bead SMD | Data Sheet | ||
| 9.5 | 0.24 | 0.125 | 63 | 33 | 30 | 9 | 5 | 240nH, 15%, 0.125mOhm, 33A MAX. Power Bead SMD | |||
| 9.5 | 0.21 | 0.125 | 63 | 38 | 33 | 9 | 5 | 210nH, 15%, 0.125mOhm, 38A Max. Power Bead SMD | |||
| 9.5 | 0.18 | 0.125 | 63 | 49 | 42 | 9 | 5 | 180nH, 15%, 0.125mOhm, 49A MAX. Power Bead SMD | Data Sheet | ||
| 9.5 | 0.15 | 0.125 | 63 | 58 | 51 | 9 | 5 | 150nH, 15%, 0.125mOhm, 58A MAX. Power Bead SMD | Data Sheet | ||
| 9.5 | 0.12 | 0.125 | 63 | 72 | 64 | 9 | 5 | 120nH, 15%, 0.125mOhm, 72A MAX. Power Bead SMD | Data Sheet | ||
| 9.5 | 0.1 | 0.125 | 63 | 80 | 70 | 9 | 5 | 100nH, 15%, 0.125mOhm, 80A MAX. Power Bead SMD | Data Sheet | ||
| 9.5 | 0.09 | 0.125 | 63 | 90 | 77 | 9 | 5 | 90nH, 15%, 0.125mOhm, 90A MAX. Power Bead SMD | Data Sheet | ||
| 9.5 | 0.08 | 0.125 | 63 | 97 | 85 | 9 | 5 | 80nH, 15%, 0.125mOhm, 97A Max. Power Bead SMD | Data Sheet | ||
| 9.5 | 0.075 | 0.125 | 63 | 110 | 93 | 9 | 5 | 75nH, 15%, 0.125mOhm, 110A Max. Power Bead SMD | Data Sheet | ||
| 9.5 | 0.07 | 0.125 | 63 | 120 | 100 | 9 | 5 | 70nH, 15%, 0.125mOhm, 120A Max. SMD Power Bead | Data Sheet | ||
| 9.5 | 0.063 | 0.125 | 63 | 130 | 108 | 9 | 5 | 63.0nH, 15%, 0.125mOhm, 130.0A Max. SMD Power Bead | Data Sheet | ||
| 9.5 | 0.055 | 0.125 | 63 | 155 | 130 | 9 | 5 | 55nH, 15%, 0.125mOhm, 155A Max. Power Bead SMD | Data Sheet | ||
| 9.5 | 0.035 | 0.125 | 63 | 230 | 180 | 9 | 5 | 35nH, 15%, 0.125mOhm, 230A Max. Power Bead SMD | Data Sheet |
