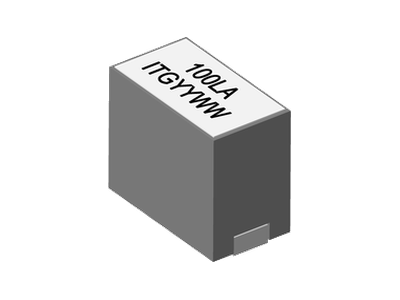

SLA40346A Serie
• Ferrite based SMD inductor with lower core loss
• Inductance Range: 80.0nH to 100.0nH, Custom values are welcomed
• High current output chokes, up to 105.0 Amp with approx. 20% roll off
• Low Profile 8.50 mm Max. height
• Foot Print 10.00 x 6.00 mm Max
• Perfect for high density designs with limited board space
• Operating frequency up to 5.0 MHz application
• Operating Temperature Range -55 ℃ to + 130 ℃, RoHs & HF compliance
• T & R Qtys: 600 pcs, 13'' Reel
• Inductance Range: 80.0nH to 100.0nH, Custom values are welcomed
• High current output chokes, up to 105.0 Amp with approx. 20% roll off
• Low Profile 8.50 mm Max. height
• Foot Print 10.00 x 6.00 mm Max
• Perfect for high density designs with limited board space
• Operating frequency up to 5.0 MHz application
• Operating Temperature Range -55 ℃ to + 130 ℃, RoHs & HF compliance
• T & R Qtys: 600 pcs, 13'' Reel
| Numero di parte | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Scarica | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 8.5 | 0.1 | 0.125 | 85 | 83 | 75 | 10 | 6 | 100nH, 15%, 0.125mOhm, 83.0A Max. SMD Power Bead | Data Sheet | ||
| 8.5 | 0.08 | 0.125 | 85 | 105 | 93 | 10 | 6 | 80nH, 15%, 0.125mOhm, 105.0A Max. SMD Power Bead | Data Sheet |
