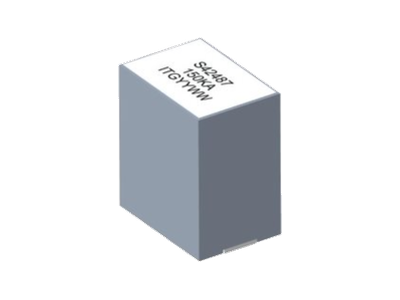

SLA42487A Serie

• Ferrite based SMD inductor with lower core loss.
• Inductance Range: 70.0nH to 220.0nH, Custom values are welcomed.
• High current output chokes, up to 230.0 Amp with approx. 20% roll off.
• Low Profile 12.15 mm Max. height .
• Foot Print 10.70 x 7.50 mm .
• Perfect for high density designs with limited board space.
• Operating frequency up to 5.0 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance .
• T & R Qtys: 300 pcs , 13'' Reel

Data Sheet

Specificazione di SLA42487A Serie

Biblioteca Campione Preventivo Domanda

Numero di parte	Height (mm) Max	Inductance L (uH)	DCR @25℃ (mΩ)	Irms (A) @ΔT 40℃	Isat2 (A) @25℃ Drop 20%	Isat6 (A) @100℃ Drop 20%	Dimension L (mm) Max	Dimension W (mm) Max	Description	Scarica
SLA42487A-220K	12.15	0.22	0.15	75	75	64	10.7	7.5	0.22uH, 10%, 0.15mOhm, 75Amp Max. SMD Power bead	Data Sheet	3D Step File
SLA42487A-200K	12.15	0.2	0.15	75	82	66	10.7	7.5	0.20uH, 10%, 0.15mOhm, 82Amp Max. SMD Power bead	Data Sheet	3D Step File
SLA42487A-180K	12.15	0.18	0.15	75	90	78	10.7	7.5	0.18uH, 10%, 0.15mOhm, 90Amp Max. SMD Power bead	Data Sheet	3D Step File
SLA42487A-150K	12.15	0.15	0.15	75	106	90	10.7	7.5	0.15uH, 10%, 0.15mOhm, 106Amp Max. SMD Power bead	Data Sheet	3D Step File
SLA42487A-130K	12.15	0.13	0.15	75	130	108	10.7	7.5	0.13uH, 10%, 0.15mOhm, 130Amp Max. SMD Power bead	Data Sheet	3D Step File
SLA42487A-110K	12.15	0.11	0.15	75	155	130	10.7	7.5	0.11uH, 10%, 0.15mOhm, 155Amp Max. SMD Power bead	Data Sheet	3D Step File
SLA42487A-95K	12.15	0.095	0.15	75	160	135	10.7	7.5	95nH, 10%, 0.15mOhm, 160Amp Max. SMD Power bead	Data Sheet	3D Step File
SLA42487A-85K	12.15	0.085	0.15	75	190	160	10.7	7.5	85nH, 10%, 0.15mOhm, 190Amp Max. SMD Power bead	Data Sheet	3D Step File
SLA42487A-70K	12.15	0.07	0.15	75	230	193	10.7	7.5	70nH, 10%, 0.15mOhm, 230Amp Max. SMD Power bead	Data Sheet	3D Step File
