- SMD

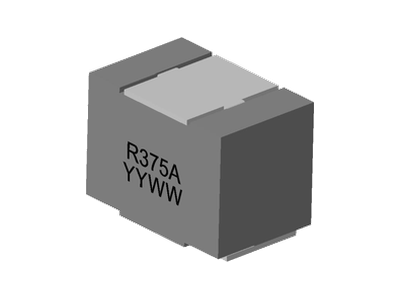

SLA46338 Serie
• Ferrite based SMD Inductor with lower core loss.
• Custom values are welcomed.
• High current output chokes, upto 43.0 Amp with approx. 20% roll off.
• Low Profile 8.60mm Max. height.
• Foot Print 11.55 x 7.70 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C, RoHs & HF compliance.
• Custom values are welcomed.
• High current output chokes, upto 43.0 Amp with approx. 20% roll off.
• Low Profile 8.60mm Max. height.
• Foot Print 11.55 x 7.70 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C, RoHs & HF compliance.
| Numero di parte | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Scarica | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 8.6 | 0.375 | 0.7 | 20 | 43 | 39 | 11.55 | 7.7 | 0.375uH, 10%, 0.7mOhm, 43Amp Max. SMD Power bead | Data Sheet |
