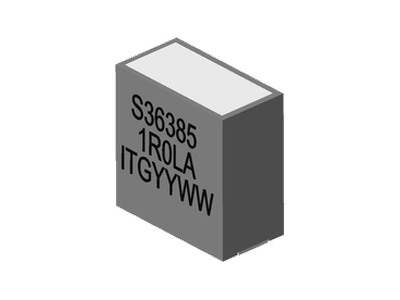

SLQ36385A Serie
| Numero di parte | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Scarica | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 9.5 | 1.5 | 0.95 | 25 | 7.5 | 6.5 | 9 | 5 | 1.5uH, 15%, 0.95mOhm, 7.5A Max. SMD Power Bead | Data Sheet | ||
| 9.6 | 1.2 | 0.95 | 25 | 10 | 8 | 9 | 5 | 1.2uH, 15%, 0.95mOhm, 10.0A Max. SMD Power Bead | Data Sheet | ||
| 9.5 | 1 | 0.95 | 12 | 10 | 9 | 5 | 1.0uH, 15%, 0.95mOhm, 12.0A Max. SMD Power Bead | Data Sheet | |||
| 9.5 | 0.68 | 0.95 | 25 | 18 | 15 | 9 | 5 | 0.68uH, 15%, 0.95mOhm, 18.0A Max. SMD Power Bead | Data Sheet | ||
| 9.5 | 0.56 | 0.95 | 25 | 21 | 18 | 9 | 5 | 0.56uH, 15%, 0.95mOhm, 21.0A Max. SMD Power Bead | Data Sheet | ||
| 9.5 | 0.47 | 0.95 | 25 | 28 | 23 | 9 | 5 | 0.47uH, 15%, 0.95mOhm, 28.0A Max. SMD Power Bead | Data Sheet | ||
| 9.5 | 0.33 | 0.95 | 25 | 45 | 38 | 9 | 5 | 0.33uH, 15%, 0.95mOhm, 45.0A Max. SMD Power Bead | Data Sheet | ||
| 9.5 | 0.22 | 0.95 | 25 | 68 | 57 | 9 | 5 | 0.22uH, 15%, 0.95mOhm, 68.0A Max. SMD Power Bead | Data Sheet |
