- DIP

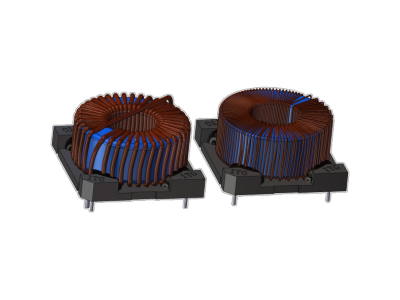

L301308 Serie
| Numero di parte | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Scarica | ||
|---|---|---|---|---|---|---|---|
| 32 | 53.9 | 53.9 | 820uH, 10%, 81.0mOhm, 8.9A. Max. Toroid DIP. | Data Sheet | 3D Step File | ||
| 30.5 | 53.9 | 53.9 | 7.0mH, 10%, 1100mOhm, 3.0A Max. Toroid DIP | Data Sheet | |||
| 32 | 53.9 | 53.9 | 680uH, 10%, 74.0mOhm, 9.8A. Max. Toroid DIP. | Data Sheet | |||
| 30.5 | 53.9 | 53.9 | 5.4mH, 10%, 820mOhm, 3.5A Max. Toroid DIP | Data Sheet | |||
| 32 | 53.9 | 53.9 | 500uH, 10%, 57.0mOhm, 11.4A. Max. Toroid DIP. | Data Sheet | |||
| 32 | 53.9 | 53.9 | 470uH, 10%, 54.5mOhm, 11.8A. Max. Toroid DIP. | Data Sheet | |||
| 31 | 53.9 | 53.9 | 4.5mH, 10%, 636mOhm, 3.8A Max. Toroid DIP | Data Sheet | 3D Step File | ||
| 32 | 53.9 | 53.9 | 350uH, 10%, 40.0mOhm, 13.7A. Max. Toroid DIP. | Data Sheet | |||
| 31 | 53.9 | 53.9 | 3.3mH, 10%, 410mOhm, 4.4A Max. Toroid DIP | Data Sheet | |||
| 34 | 53.9 | 53.9 | 250H, 10%, 26.5mOhm, 16.3A. Max. Toroid DIP. | Data Sheet | |||
| 32 | 53.9 | 53.9 | 2.2mH, 10%, 270mOhm, 5.4A Max. Toroid DIP. | Data Sheet | 3D Step File | ||
| 35 | 53.9 | 53.9 | 205uH, 10%, 20.5mOhm, 17.9A. Max. Toroid DIP. | Data Sheet | |||
| 32 | 53.9 | 53.9 | 1.8mH, 10%, 205mOhm, 6.1A. Max. Toroid DIP. | Data Sheet | |||
| 32 | 53.9 | 53.9 | 1.22mH. 10%. 162.00mOhm. 7.3A. Max. Toroid DIP. | Data Sheet | |||
| 32 | 53.9 | 53.9 | 1.0mH, 10%, 106.5mOhm, 8.1A. Max. Toroid DIP. | Data Sheet | |||
| 33.5 | 53.9 | 53.9 | 105uH, 10%, 14.5mOhm, 25.0A. Max. Toroid DIP. | Data Sheet |
