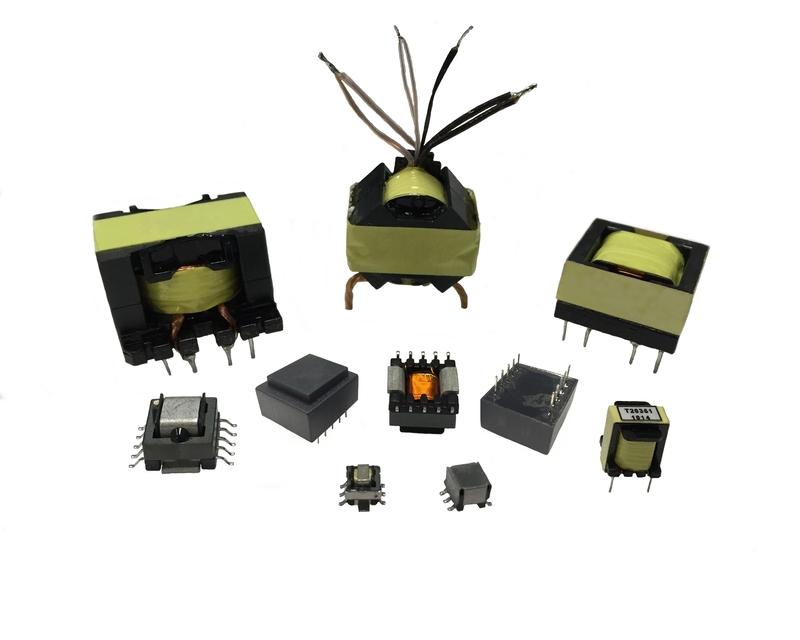

Transformer-製品-ITG

B1809

SMD Balun RF Transformer in 4.6 x 4.6mm foot print, 2.3mm height

SMD

B1814

SMD Balun RF Transformer, 3.5dB to 2.0dB max

SMD

B2618

SMD Balun RF Transformer in 6.5 x 6.2mm foot print, 4.5mm height

SMD

L101456

ST 48V 1500 Watt Integrated Coupled Inductor OCL: 2.7uH, Lk: 1.4uH, 0.86mOhm, 94.0Amp

SMD

SLA694717A

Ferrite based Transformer 2.2uH to 2.4uH, 0.6mOhm DCR, 42.0A Current

SMD

SLA694719C

Ferrite based Transformer 2.2uH to 3.2uH, 0.65mOhm DCR, 42.0A Current

SMD

T10135

Current Sense Transformer 1.5mH to 224.0mH, 0.08mOhm to 0.28mOhm DCR, 50.0A to 80.0A Current

SMD

T101550A

SMD Planar Transformer 1.5uH to 6.0uH, 1.0mOhm to 2.2mOhm DCR, 26.0A to 35.0A Current

SMD

T101674A

140Watt Flyback Transformer for USB PD3.1 Application, 230uH, 10%, Isat: 4.0A

DIP

T181416

Half-bridge dual active LLC transformer, 33.0uH to 129.0uH, 10%, 0.33mOhm to 24.54mohm, 13.0Amp

DIP

T181516

Half-bridge dual active LLC transformer, 26.7uH to 129.0uH, 10%, 0.16mOhm to 19.5mohm, 17.0Amp

DIP

Flyback Transformer 120.0uH, 10%, 150.0mOhm, 4.0Amp Isat ITG P/N T201210A-007 ( Flyback Transformer) and C201517BQ-103(10mH common mode choke)are designed and developed for ST USB-PD 65 W Active Clamp Flyback (ACF) converter board with ST STACF01 controllerST P/N EVLSTACF01-65WU.

DIP

製品カテゴリ

Transformer
