ポータブル & モバイル デバイス

FM362925B

0.27uH to 1000.0uH, 5%, 10%, 0.08Ohm to 46Ohm, 3.9Amp to 0.095Amp SMD 1210 Small Signal Inductor

FM362925A

0.12uH to 150.0uH, 5%, 10%, 0.07Ohm to 8.29Ohm, 2.0Amp to 0.135Amp SMD 1210 Small Signal Inductor

FM292520B

0.078uH to 330.0uH, 5%, 10%, 0.042Ohm to 32.5Ohm, 3.2Amp to 0.130Amp SMD 1008 Small Signal Inductor

FM292520A

0.1uH to 100.0uH, 5%, 10%, 0.2Ohm to 19.6Ohm, 1.3Amp to 0.2Amp SMD 1008 Small Signal Inductor

FM241613A

0.078uH to 82.0uH, 5%, 10%, 0.076Ohm to 21.6Ohm, 2.0Amp to 0.06Amp SMD 0805 Small Signal Inductor

FM181211B

0.047uH to 15.0uH, 5%, 10%, 0.075Ohm to 9.5Ohm, 1.8Amp to 0.24Amp SMD 0603 Small Signal Inductor

CP252009

0.47uH to 4.7uH, 20%, 70mOhm to 200mOhm, 1.8Amp to 1.1Amp SMD 1008 Small Signal Inductor

CP201609

0.68uH to 4.7uH, 20%, 150mOhm to 300mOhm, 1.5Amp to 1.1Amp SMD 0806 Small Signal Inductor

CP201209

0.47uH to 4.7uH, 20%, 100mOhm to 300mOhm, 1.1Amp to 0.5Amp SMD 0805 Small Signal Inductor

CM352115A

6.8nH to 1,800.0H, 2%, 5%, 10%, 0.07Ohm to 3.9Ohm, 1.0Amp to 0.3Amp, SMD 1206 Small Signal Inductor

CM292520B

4.1nH to 560.0H, 2%, 5%, 10%, 0.05Ohm to 1.25Ohm, 1.6Amp to 0.42Amp, SMD 1008 Small Signal Inductor

CM292520A

4.7nH to 10,000.0H, 2%, 5%, 10%, 0.15Ohm to 4.0Ohm, 1.0Amp to 0.15Amp, SMD 1008 Small Signal Inductor

CM241614B

2.5nH to 180.0H, 2%, 5%, 10%, 0.03Ohm to 0.6Ohm, 1.6Amp to 0.6Amp, SMD 0805 Small Signal Inductor

CM241614A

2.2nH to 4700.0H, 2%, 5%, 10%, 0.05Ohm to 15.0Ohm, 0.8Amp to 0.13Amp, SMD 0805 Small Signal Inductor

CM181210A

1.6nH to 470.0H, 2%, 5%, 10%, 0.03Ohm to 4.0Ohm, 0.7Amp to 0.08Amp SMD 0603 Small Signal Inductor

CL321611

0.1uH to 33uH, 10%&20%, 250Ohm to 1050mOhm, 250mAmp to 5mAmp SMD 1206 Small Signal Inductor

CL201212

3.3uH to 33uH,10% to 20%, 800mOhm to 1250mOhm, 30mAmp to 5mAmp SMD 0805 Small Signal Inductor

CL201209

0.047uH to 2.2uH, 10%&20%, 200mOhm to 1000mOhm, 300mAmp to 30mAmp SMD 0603 Small Signal Inductor

CL160808

0.047uH to 22uH, 10%&20%, 300mOhm to 2100mOhm, 50mAmp to 1mAmp SMD 0603 Small Signal Inductor

CF201212

150.0nH to 680.0nH, 5%, 1000mOhm to 5500mOhm, 0.3Amp to 0.05Amp SMD 0805 Ceramic Chip inductor

CF201209

1.0nH to 120.0nH, 0.3nH,5%, 100mOhm to 950mOhm,0.3Amp SMD 0805 Ceramic Chip inductor

CF100505

1.0nH to 220.0nH, ,0.1nH, 0.3nH, 5%, 100mOhm to 3770mOhm, 0.3Amp to 0.12Amp SMD 0402 Ceramic Chip inductor

CF060303

1.0nH to 22.0nH, ,0.1nH, 0.3nH,5%, 110mOhm to 1000mOhm, 0.47Amp to 0.15Amp SMD 0201 Ceramic Chip inductor

SLA40476B

0.070uH to 0.58uH, 15%, 0.125mOhm, 170.0Amp to 18.0Amp SMD Power bead.

SLA40407A

0.10uH to 0.33uH, 15%, 0.125mOhm, 128.0Amp to 40Amp SMD Power bead.

SLA36385B

0.150uH to 0.47uH, 15% or 20%, 0.40mOhm, 73.0Amp to 21.0Amp SMD Power bead

SLA36385A

0.035uH to 0.47uH, 15%, 0.125mOhm, 230.0Amp to 16Amp SMD Power bead.

SL4128

0.12uH to 0.39uH, 10% or 15%, 0.29mOhm, 88.0Amp to 28.0Amp SMD Power bead.

FB13A

0.09uH to 0.3uH, 10%, 0.17mOhm, 134Amp to 33Amp SMD Power bead

AHR37408

70.0 nH to 150.0 nH. 0.16mOhm DCR. 170.0A to 78.0 A Max. 9.41 x 8.00 mm foot print with 10.00 mm max height.

AH3933

Inductance: 65.0nH to 150.0nH. High current of up to 110.0 A (20% Roll off). 10.00 x 6.40mm foot print with 8.50 mm max height.

SMX40187A

0.09uH-0.47uH, 20%, 0.33mOhm-1.25mOhm, 120.0A-50.0A Max. SMD Molded Inductor

SMX40157A

70nH to 150nH, 20%, 0.23mOhm to 0.42mOhm, 105.0Amp to 75.0Amp SMD Molded Inductor

SMX2511A

0.10uH-22.0uH, 20%, 0.68mOhm-130.5mOhm, 70.0-4.3A Max. SMD Molded Inductor

SMHC40156A

0.10uH-0.36uH, 20%, 0.60mOhm-1.36mOhm, 120.0A-58.0A Max. SMD Molded Inductor

SMF252012A

0.33uH-2.2uH, 20%, 7.8mOhm-54.0mOhm, 9.5A-3.0A Max. SMD Molded Inductor

SMF252010A

0.1uH-4.7uH, 20%, 5.8mOhm-145.0mOhm, 9.0A-2.1A Max. SMD Molded Inductor

SMF2511B

0.18uH-4.5uH, 20%, 1.52mOhm-21.0mOhm, 40.0A-8.0A Max. SMD Molded Inductor

SMF2511A

0.10uH-3.3uH, 20%, 0.55mOhm-14.0mOhm, 78.0A-14.0A Max. SMD Molded Inductor

SMF2011B

0.10uH-4.7uH, 20%, 0.74mOhm-16.5mOhm, 53.0A-7.2A Max. SMD Molded Inductor

SMF2009A

0.10uH-0.33uH, 20%, 0.83mOhm-2.00mOhm, 56.0A-34.0A Max. SMD Molded Inductor

SMF1611B

0.22uH to 6.8uH, 20%, 2.0mOhm to 47.0mOhm, 29.0Amp to 5.0Amp SMD Molded Inductor

SMF1608B

0.1uH-4.7uH, 20%, 1.3mOhm-33.0mOhm, 35.0A-5.0A Max. SMD Molded Inductor

SMF1605A

0.1uH, 20%, 4.85mOhm, 20.0Amp SMD Molded Inductor.

SMF1205B

0.1uH to 1.0uH, 20%, 7.8mOhm to 32.0mOhm, 20.0Amp to 5.5Amp SMD Molded Inductor.

SMEC2511A

0.22uH-10.0uH, 20%, 2.15mOhm-60.00mOhm, 34.0A-5.5A Max. SMD Molded Inductor

SM6827A

0.47uH to 100uH, 20%, 0.78mOhm to 95.0mOhm, 85.5Amp to 4.5Amp SMD Molded Inductor

SM5026Q

0.22uH-33.0uH, 20%, 0.53mOhm-40.20mOhm, 105.0A-8.0A Max. SMD Power Bead

SM5018A

0.15uH to 47.0uH, 20%, 0.35mOhm to 90.5mOhm, 75.0Amp to 5.0Amp SMD Molded Inductor.

SM4018Q

0.68uH-47.0uH, 20%, 1.6mOhm-96.0mOhm, 32.0A-4.5A Max. SMD Power Bead

SM4013A

0.12uH - 3.30uH, 20%, 0.455mOhm - 9.5mOhm, 70.0A - 11.0A Max. SMD Molded Inductor

SM3315A

0.10uH-33.0uH, 20%, 0.48mOhm-120.0mOhm, 72.0-4.0A Max. SMD Molded Inductor

SM2518A

0.22uH to 6.8uH, 20%, 1.1mOhm to 36.0mOhm, 32.0Amp to 6.5Amp SMD Molded Inductor.

SM2511A

0.033uH to 33.0uH, 20%,0.26mOhm to 310.0mOhm, 100.0Amp to 2.5Amp SMD Molded Inductor.

SM2509A

0.1uH to 22uH, 20%, 0.8mOhm to 238mOhm, 52Amp to 2.25Amp SMD Power Inductor

SM2507A

SM2506A

0.045uH to 0.22uH, 20%, 1.0mOhm to 5.4mOhm, 45Amp to 27Amp SMD Molded Inductor

SM2504

1.0uH to 10.0uH, 20%, 36.0mOhm to 265.0mOhm, 6.0Amp to 2.1Amp SMD Molded Inductor.

SM2011TK

3.3uH to 4.7uH, 20%, 38.0mOhm to 61.0mOhm, 4.20Amp to 3.50Amp SMD Molded Inductor.

SM2011A

0.1uH to 10.0uH, 20%, 2.4mOhm to 119.5mOhm, 33.0Amp to 3.9Amp SMD Molded Inductor.

SM2011

0.2uH to 4.7uH, 20%, 4.2mOhm to 63.9mOhm, 26.5Amp to 6.0Amp SMD Molded Inductor.

SM2008A

0.47uH - 3.30uH, 20%, 7.5mOhm - 42.0mOhm, 17.0A - 7.0A Max. SMD Molded Inductor

SM2007A

Molded inductor ideal for portable devices, Tablets and high density DC to DC converter.

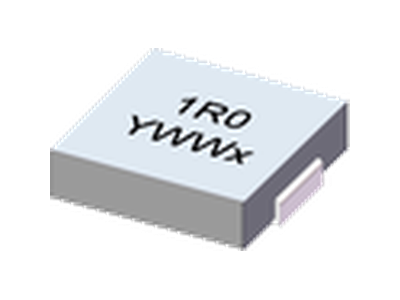

SM2006A

0.22uH-3.30uH, 20%, 3.85mOhm-89.00mOhm, 17.0A-4.25A Max. SMD Molded Inductor

SM1608A

0.02uH to 22.0uH, 20%, 0.355mOhm to 330.0mOhm, 78.0Amp to 1.65Amp SMD Molded Inductor.

SM1608

0.1uH to 6.8uH, 20%, 4.5mOhm to 162.0mOhm, 11.0Amp to 2.0Amp SMD Molded Inductor.

SM1605A

0.22uH to 4.7uH, 20%, 9.35mOhm to 193.0mOhm, 11.0Amp to 2.8Amp SMD Molded Inductor.

SQ4120

0.62uH to 1.5uH, 1.10mOhm Max, 23A to 8.0A Max. Flat Wire SMD

CI321611

Z=31Ohm to 1000Ohm, 25%,1000mAmp to 6000mAmp, SMD 1206 Ferrite Bead

CI201209

Z=7Ohm to 1500Ohm, 25%,1000mAmp to 6000mAmp, SMD 0805 Ferrite Bead

CI160808

Z=30Ohm to 1000Ohm, 25%, 1000mAmp to 6000mAmp, SMD 0603 Ferrite Bead

CI100505

Z=30Ohm to 1000Ohm, 25%, 1000mAmp to 6000mAmp, SMD 0402 Ferrite Bead

CB201209

Z=11Ohm to 1500Ohm, 25%, 300mAmp, SMD 0805 Ferrite Bead

CB160808

Z=19Ohm to 1500Ohm, 25%, 200mAmp to 600mAmp, SMD 0603 Ferrite Bead

CB100505

Z=10Ohm to 1000Ohm, 25%, 50mAmp to 500mAmp, SMD 0402 Ferrite Bead

CB060303

Z=10Ohm to 6000Ohm, 25%, 100mAmp to 500mAmp, SMD 0201 Ferrite Bead

SPNR252012A

Inductance: 0.33 uH to 10.00 uH. High current of up to 7.0 A (30% Roll off). 2.80 x 2.35 mm foot print with 1.30 mm max height.

SPNR4220A

0.47uH - 10.0uH, 20%, 16.0mOhm - 185.0mOhm, 17.0A - 3.6A Max. SMD Drum Inductor

SPNR4213A

0.33uH - 22.0uH, 20%, 25.0mOhm - 628.0mOhm, 11.5A - 1.25A Max. SMD Drum Inductor

SPNR3213A

0.33uH-10.0uH, 20%-30%, 21.0mOhm-370.0mOhm, 9.5A-1.35A Max. SMD Drum Inductor Miniature SMD Shielded Power Inductor in a 3.2*3.2mm foot print. Low profile : 1.35mm max. height.

SLNR4330

Inductance range: 0.91uH to 120.0uH. High current of up to 6.25A (30% Roll off). 4.30 x 4.30mm foot print with 3.00mm max height.

SLNR5320

0.75uH to 100.0uH, 20% or 30%, 14mOhm to 1060mOhm, 6.32Amp to 0.57Amp SMD Drum Inductor.

SLNR5341

1.0uH to 680.0uH, 20% or 30%, 14mOhm to 3846mOhm, 7.5Amp to 0.3Amp SMD Drum Inductor.

SLNR6247

Power Inductor, 4.7uH, 6.7A, 31.0mΩ DCR.

SLNR6310

1.5uH to 22.0uH, 20% or 30%, 90mOhm to 580mOhm, 2.4Amp to 0.65Amp SMD Drum Inductor.

SLNR6312

2.5uH to 100.0uH, 20% or 30%, 90mOhm to 2180mOhm, 2.1Amp to 0.35Amp SMD Drum Inductor.

SLNR6320

0.5uH to 22.0uH, 20% or 30%, 13mOhm to 204mOhm, 4.9Amp to 1.25Amp SMD Drum Inductor.

SLNR252010

0.47uH to 10.0uH, 20% or 30%, 47mOhm to 1092mOhm, 3.35Amp to 0.78Amp SMD Drum Inductor.

SLNR252012

0.68uH to 15.0uH, 20% or 30%, 65mOhm to 1250mOhm, 3.06Amp to 0.67Amp SMD Drum Inductor.

SLNR3310

1.0uH to 56.0uH, 20% or 30%, 65mOhm to 2320mOhm, 1.4Amp to 0.21Amp SMD Drum Inductor.

SLNR3312

0.82uH to 100.0uH, 20% or 30%, 30mOhm to 2860mOhm, 2.05Amp to 0.21Amp SMD Drum Inductor.

SLNR3315

1.0uH to 68.0uH, 20% or 30%, 30mOhm to 2700mOhm, 2.3Amp to 0.28Amp SMD Drum Inductor.

SLNR4310

1.0uH to 47.0uH, 20% or 30%, 100mOhm to 1810mOhm, 1.8Amp to 0.24Amp SMD Drum Inductor.

SLNR4312

0.82uH to 100.0uH, 20% or 30%, 50mOhm to 2210mOhm, 3.53Amp to 0.25Amp SMD Drum Inductor.

SLNR4318

1.0uH to 220.0uH, 20% or 30%, 30mOhm to 4000mOhm, 4.0Amp to 0.27Amp SMD Drum Inductor.

SLNR4320

1.0uH to 100.0uH, 20% or 30%, 29mOhm to 1350mOhm, 4.85Amp to 0.52Amp SMD Drum Inductor.

SDRH127B

Inductance range: 0.82uH to 1000.0uH. High current of up to 38.0A (30% Roll off). 12.5 x 12.5mm foot print with 8.10mm max height.

FM0504A

SMD Common mode Chokes in 1.2x1.0mm foot print, 0.9mm height. Impedance: 120 Ohm
