- SMD
SLNR3312 シリーズ

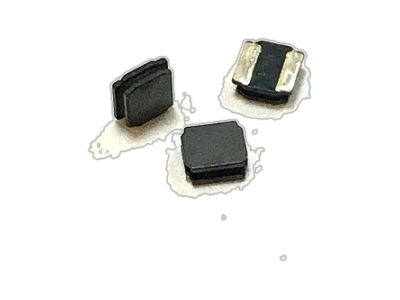

• Miniature SMD shielded power inductor.
• Low profile 1.2mm max height.
• Inductance range of 0.82uH to 100.0uH.
• Ideal for DC to DC power converter application.
• Operating temperature range of -55.0 °C ~ +130.0°C.
• RoHS and HF compliant.
• Tape and Reel quantities :2,000pcs, 7” Reel.
• Low profile 1.2mm max height.
• Inductance range of 0.82uH to 100.0uH.
• Ideal for DC to DC power converter application.
• Operating temperature range of -55.0 °C ~ +130.0°C.
• RoHS and HF compliant.
• Tape and Reel quantities :2,000pcs, 7” Reel.
| 部品番号 | Length (mm) Max | Height (mm) Max | Dimension W (mm) Max | Description | ダウンロード | |
|---|---|---|---|---|---|---|
| 3.2 | 1.3 | 3.2 | 0.22uH, 30%, 18mOhm, 3.5Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 3.3 | 1.2 | 3.3 | 0.82uH, 30%, 30mOhm, 2.05Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 3.3 | 1.2 | 3.3 | 82uH, 20%, 2,540mOhm, 0.22Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 3.3 | 1.2 | 3.3 | 6.8uH, 20%, 190mOhm, 0.75Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 3.3 | 1.2 | 3.3 | 68uH, 20%, 1,670mOhm, 0.24Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 3.3 | 1.2 | 3.3 | 62uH, 20%, 1,530mOhm, 0.25Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 3.3 | 1.2 | 3.3 | 56uH, 20%, 1,380mOhm, 0.26Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 3.3 | 1.2 | 3.3 | 4.7uH, 20%, 120mOhm, 0.9Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 3.3 | 1.2 | 3.3 | 47uH, 20%, 1,450mOhm, 0.27Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 3.3 | 1.2 | 3.3 | 3.3uH, 20%, 100mOhm, 1.05Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 3.3 | 1.2 | 3.3 | 39uH, 20%, 1,330mOhm, 0.3Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 3.3 | 1.2 | 3.3 | 36uH, 20%, 950mOhm, 0.34Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 3.3 | 1.2 | 3.3 | 33uH, 20%, 875mOhm, 0.36Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 3.3 | 1.2 | 3.3 | 2.7uH, 30%, 85mOhm, 1.48Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 3.3 | 1.2 | 3.3 | 2.4uH, 30%, 68mOhm, 1.15Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 3.3 | 1.2 | 3.3 | 2.2uH, 30%, 75mOhm, 1.2Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 3.3 | 1.2 | 3.3 | 27uH, 20%, 770mOhm, 0.4Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 3.3 | 1.2 | 3.3 | 22uH, 20%, 630mOhm, 0.42Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 3.3 | 1.2 | 3.3 | 1.8uH, 30%, 55mOhm, 1.51Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 3.3 | 1.2 | 3.3 | 1.5uH, 30%, 45mOhm, 1.62Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 3.3 | 1.2 | 3.3 | 1.2uH, 30%, 45mOhm, 2.22Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 3.3 | 1.2 | 3.3 | 1uH, 30%, 40mOhm, 1.87Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 3.3 | 1.2 | 3.3 | 18uH, 20%, 545mOhm, 0.43Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 3.3 | 1.2 | 3.3 | 15uH, 20%, 360mOhm, 0.45Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 3.3 | 1.2 | 3.3 | 12uH, 20%, 345mOhm, 0.48Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 3.3 | 1.2 | 3.3 | 100uH, 20%, 2,860mOhm, 0.21Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 3.3 | 1.2 | 3.3 | 10uH, 20%, 265mOhm, 0.6Amp Max. SMD Shielded Drum Inductor | Data Sheet |
