SLNR4318 シリーズ

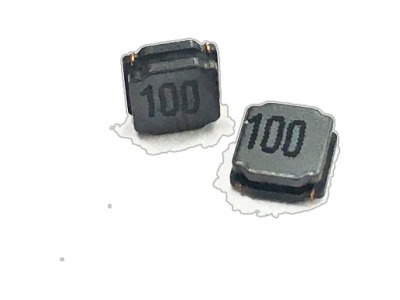

• Miniature SMD shielded power inductor.
• Low profile 1.8mm max height.
• Inductance range of 1.0uH to 220.0uH.
• Ideal for DC to DC power converter application.
• Operating temperature range of -55.0 °C ~ +130.0°C.
• RoHS and HF compliant.
• Tape and Reel quantities: 3,500pcs, 13” Reel.
• Low profile 1.8mm max height.
• Inductance range of 1.0uH to 220.0uH.
• Ideal for DC to DC power converter application.
• Operating temperature range of -55.0 °C ~ +130.0°C.
• RoHS and HF compliant.
• Tape and Reel quantities: 3,500pcs, 13” Reel.
| 部品番号 | Length (mm) Max | Height (mm) Max | Dimension W (mm) Max | Description | ダウンロード | |
|---|---|---|---|---|---|---|
| 4.3 | 1.8 | 4.3 | 6.8uH, 20%, 110mOhm, 1.45Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 4.3 | 1.8 | 4.3 | 68uH, 20%, 1,000mOhm, 0.47Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 4.3 | 1.8 | 4.3 | 4.7uH, 20%, 90mOhm, 1.7Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 4.3 | 1.8 | 4.3 | 47uH, 20%, 650mOhm, 0.57Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 4.3 | 1.8 | 4.3 | 3.3uH, 20%, 70mOhm, 2Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 4.3 | 1.8 | 4.3 | 33uH, 20%, 530mOhm, 0.65Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 4.3 | 1.8 | 4.3 | 2.2uH, 20%, 60mOhm, 2.7Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 4.3 | 1.8 | 4.3 | 220uH, 20%, 4,000mOhm, 0.27Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 4.3 | 1.8 | 4.3 | 22uH, 20%, 360mOhm, 0.8Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 4.3 | 1.8 | 4.3 | 1uH, 30%, 30mOhm, 4Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 4.3 | 1.8 | 4.3 | 150uH, 20%, 2,500mOhm, 0.31Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 4.3 | 1.8 | 4.3 | 15uH, 20%, 250mOhm, 0.94Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 4.3 | 1.8 | 4.3 | 100uH, 20%, 1,500mOhm, 0.4Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 4.3 | 1.8 | 4.3 | 10uH, 20%, 180mOhm, 1.2Amp Max. SMD Shielded Drum Inductor | Data Sheet |
