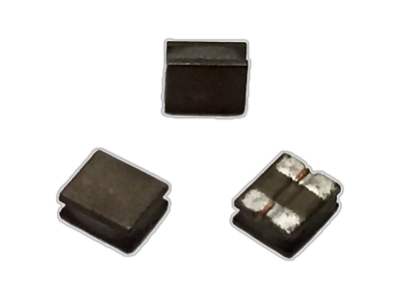

SPNR252012A シリーズ
• SMD Inductor for high frequency applications
• Inductance range from 0.33uH to 10.0uH. Custom values are welcomed.
• High saturation current characteristics by distributed gapped metal dust core.
• Ideal for portable device like Tablets, Notebook, Computers, E-reader, and high density DC to DC Converter boardLower DC resistance for higher current application
• Small foot print 2.80 x 2.35mm with Max Height of 1.30mm
• Operating frequency up to 5.0MHz.
• Tape & Reel Quantity: 2000 piece per 7 inches reel.
• Operating temperature range: -40˚C to 125˚C
• RoHS and HF compliant.
• Inductance range from 0.33uH to 10.0uH. Custom values are welcomed.
• High saturation current characteristics by distributed gapped metal dust core.
• Ideal for portable device like Tablets, Notebook, Computers, E-reader, and high density DC to DC Converter boardLower DC resistance for higher current application
• Small foot print 2.80 x 2.35mm with Max Height of 1.30mm
• Operating frequency up to 5.0MHz.
• Tape & Reel Quantity: 2000 piece per 7 inches reel.
• Operating temperature range: -40˚C to 125˚C
• RoHS and HF compliant.
| 部品番号 | Length (mm) Max | Height (mm) Max | Dimension W (mm) Max | Description | ダウンロード | |
|---|---|---|---|---|---|---|
| 2.8 | 1.3 | 2.35 | 0.47uH, 20%, 25mOhm DCR, 6.0Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 2.8 | 1.3 | 2.35 | 0.33uH, 20%, 22mOhm DCR, 7.0Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 2.8 | 1.3 | 2.35 | 4.7uH, 20%, 220Ohm DCR, 2.2Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 2.8 | 1.3 | 2.35 | 3.3uH, 20%, 140mOhm DCR, 2.5Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 2.8 | 1.3 | 2.35 | 2.2uH, 20%, 90mOhm DCR, 3.2Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 2.8 | 1.3 | 2.35 | 1.5uH, 20%, 65mOhm DCR, 4.0Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 2.8 | 1.3 | 2.35 | 1uH, 20%, 47mOhm DCR, 4.5Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 2.8 | 1.3 | 2.35 | 10uH, 20%, 450mOhm DCR, 1.4Amp Max. SMD Shielded Drum Inductor | Data Sheet |
