SLNR3310 シリーズ

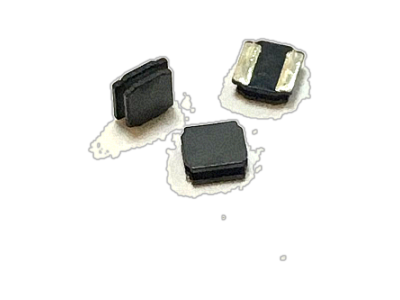

• Miniature SMD shielded power inductor.
• Low profile 1.0mm max height.
• Inductance range of 1.0uH to 56.0uH.
• Ideal for DC to DC power converter application.
• Operating temperature range of -55.0 °C ~ +130.0°C.
• RoHS and HF compliant.
• Tape and Reel quantities :2,000pcs, 7” Reel.
• Low profile 1.0mm max height.
• Inductance range of 1.0uH to 56.0uH.
• Ideal for DC to DC power converter application.
• Operating temperature range of -55.0 °C ~ +130.0°C.
• RoHS and HF compliant.
• Tape and Reel quantities :2,000pcs, 7” Reel.
| 部品番号 | Length (mm) Max | Height (mm) Max | Dimension W (mm) Max | Description | ダウンロード | |
|---|---|---|---|---|---|---|
| 3.3 | 1 | 3.3 | 6.8uH, 30%, 300mOhm, 0.61Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 3.3 | 1 | 3.3 | 56uH, 20%, 2,320mOhm, 0.21Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 3.3 | 1 | 3.3 | 51uH, 20%, 2,200mOhm, 0.21Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 3.3 | 1 | 3.3 | 4.7uH, 30%, 190mOhm, 0.75Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 3.3 | 1 | 3.3 | 47uH, 20%, 1,950mOhm, 0.22Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 3.3 | 1 | 3.3 | 3.6uH, 30%, 165mOhm, 0.95Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 3.3 | 1 | 3.3 | 3.3uH, 30%, 140mOhm, 0.97Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 3.3 | 1 | 3.3 | 39uH, 20%, 1,750mOhm, 0.28Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 3.3 | 1 | 3.3 | 33uH, 20%, 1,550mOhm, 0.29Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 3.3 | 1 | 3.3 | 2.7uH, 30%, 130mOhm, 1Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 3.3 | 1 | 3.3 | 2.2uH, 30%, 95mOhm, 1.15Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 3.3 | 1 | 3.3 | 27uH, 20%, 1,080mOhm, 0.3Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 3.3 | 1 | 3.3 | 22uH, 20%, 930mOhm, 0.35Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 3.3 | 1 | 3.3 | 1.5uH, 30%, 80mOhm, 1.27Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 3.3 | 1 | 3.3 | 1uH, 30%, 65mOhm, 1.4Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 3.3 | 1 | 3.3 | 15uH, 20%, 610mOhm, 0.42Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 3.3 | 1 | 3.3 | 12uH, 20%, 505mOhm, 0.43Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 3.3 | 1 | 3.3 | 10uH, 20%, 400mOhm, 0.55Amp Max. SMD Shielded Drum Inductor | Data Sheet |
